FEATURES
●Free-Tilting Design: makes easy forward or backward adjustment for better viewing and reduced glare
●Swiveling Arm(s): offer(s) maximum viewing flexibility (makes every seat the best seat)
●Leveling adjustments: allow TV to be perfectly positioned after hanging
●Cable Management: keeps everything organized
SPECIFICATIONS
Product Category : Full-motion TV Wall Mount
Rank : Standard
Material : Steel,Plastic
Metal Sheet Thickness : Bracket Arm THK=1.5mm cold-rolled sheet,Wall Plate THK=2.5mm pickling sheet (Bracket Arm THK=0.059" cold-rolled sheet,Wall Plate THK=0.098" pickling sheet)
Pipe Size : 40x20x1.5mm,30x10x1.2mm
Surface Finish : Powder Coating
Color : Fine Texture Black

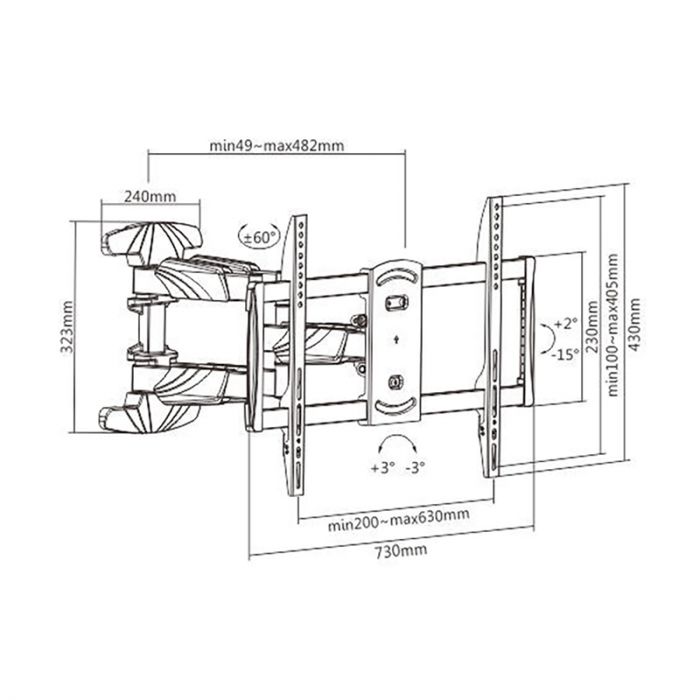

Dimensions : 730x430x482mm
Fit Screen Size : 37"-70"
Fit Curved TV : Yes
Mounting Hole Pattern : VESA & Universal
VESA Compatible : 200x200,400x200,300x300,400x400,600x400
Max. Mounting Hole : 600x400
Weight Capacity : 45kg
Strength Tested : 3 Times Approved
Profile : 49~482mm
Tilt Range : ＋2°～-15°
Swivel Range : +60°~-60°
Screen Level : +3°~-3°
Screen Freely Tilting : No
Installation : Solid Wall,Single Stud
Panel Type : Detachable Panel
Wall Plate Type : Fixed Wall Plate
Cable Management : Yes
Anti-theft : No
