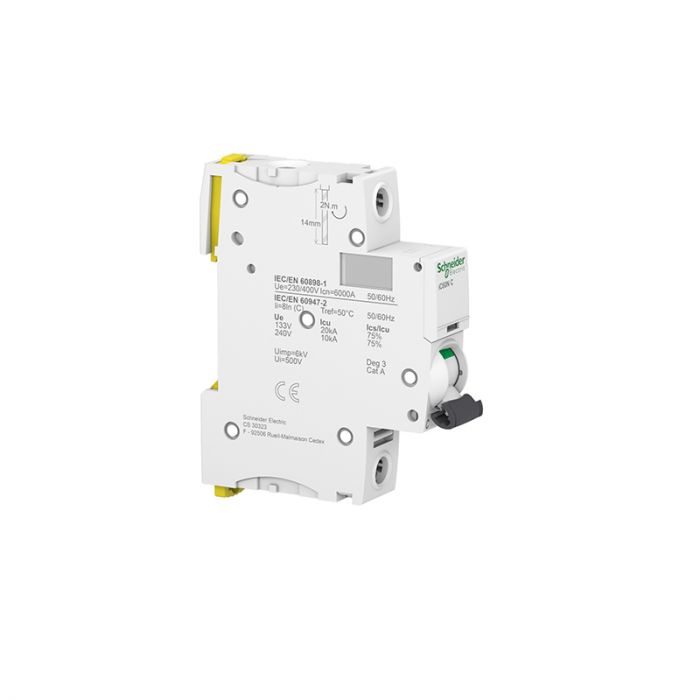

Miniature circuit-breaker 1P, 25 A, C curve, 6000 A (IEC 60898-1), 10 kA (IEC 60947-2)

**Product type : Miniature circuit-breaker
**Poles description :1P
**Number of protected poles : 1
**[In] rated current : 25 A
**Network type : DC & AC
**Trip unit technology : Thermal-magnetic
**Curve code : C
**Breaking capacity :
6000 A Icn at 230 V AC 50/60 Hz conforming to EN/IEC 60898-1
**Suitability for isolation :
Yes conforming to EN 60898-1
Yes conforming to EN 60947-2
Yes conforming to IEC 60898-1
Yes conforming to IEC 60947-2
**Standards :
EN 60898-1
IEC 60898-1
IEC 60947-2
EN 60947-2
**Quality labels : NF
**Network frequency : 50/60 Hz
**rated insulation voltage : 500 V AC 50/60 Hz
**Magnetic tripping limit : 8 x In +/- 20 %
**Contact position indicator : Yes
**Control type : Toggle
**Local signalling : Trip indicator
**Mounting mode : Fixed
**Mounting support : DIN rail
**Comb busbar and distribution block compatibility :
Top or bottom: YES
**9 mm pitches : 2
**Dimenions : Height 85 X Width 18 X Depth 78.5 mm
**Net weight : 0.215 kg
**Colour : White
**Mechanical durability : 20000 cycles
**Electrical durability : 10000 cycles
**Connections - terminals :
Single terminal (top or bottom) 1…25 mm² rigid
Single terminal (top or bottom) 1…16 mm² flexible
**Wire stripping length : 14 mm for top or bottom connection
**Tightening torque : 2 N.m top or bottom
**Earth-leakage protection : Without
**IP degree of protection : IP20
**Tropicalisation : 2 conforming to IEC 60068-1
**Relative humidity : 95 % at 55 °C
**Operating altitude : 0...2000 m
**Ambient air temperature for operation -35…70 °C
**Ambient air temperature for storage -40…85 °C
