FEATURES
●Easy Assembly: Installation is as easy as 1-2-3
●Open Architecture: provides increased ventilation and easier access to wires
●Automatically Click-in Spring Lock: helps TV brackets snap into place for added safety
●Free-Tilting Design: makes easy forward or backward adjustment for better viewing and reduced glare
SPECIFICATIONS

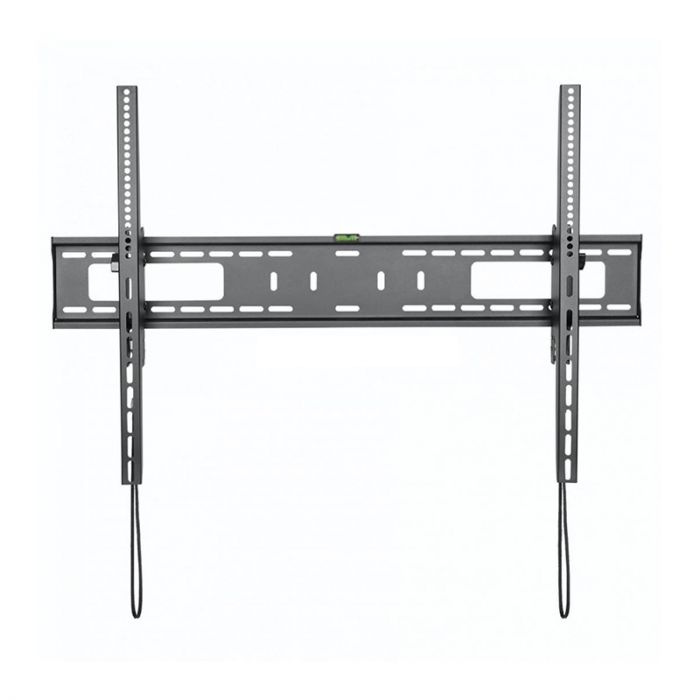

Product Category : Tilt TV Wall Mount
Rank : Standard
Material : Steel,Plastic
Metal Sheet Thickness : Bracket Arm THK=2mm cold-rolled sheet,Wall Plate THK=2mm cold-rolled sheet (Bracket Arm THK=0.079" cold-rolled sheet,Wall Plate THK=0.079" cold-rolled sheet)
Surface Finish : Powder Coating
Color : Matte Black
Dimensions : 954x625x85mm
Fit Screen Size : 60"-100"
Fit Curved TV : Yes
Mounting Hole Pattern : VESA & Universal
VESA Compatible : 200x200,300x200,400x200,300x300,400x300,400x400,600x400,600x600,800x600,900x600
Max. Mounting Hole : 900x600
Weight Capacity : 75kg
Strength Tested : 3 Times Approved
Profile : 85mm
Tilt Range : +5°~-10°
Screen Freely Tilting : No
Installation : Solid Wall,Double Stud(406mm/450mm/600mm)
Panel Type : Detachable Panel
Wall Plate Type : Fixed Wall Plate
Cable Management : No
Anti-theft : No
