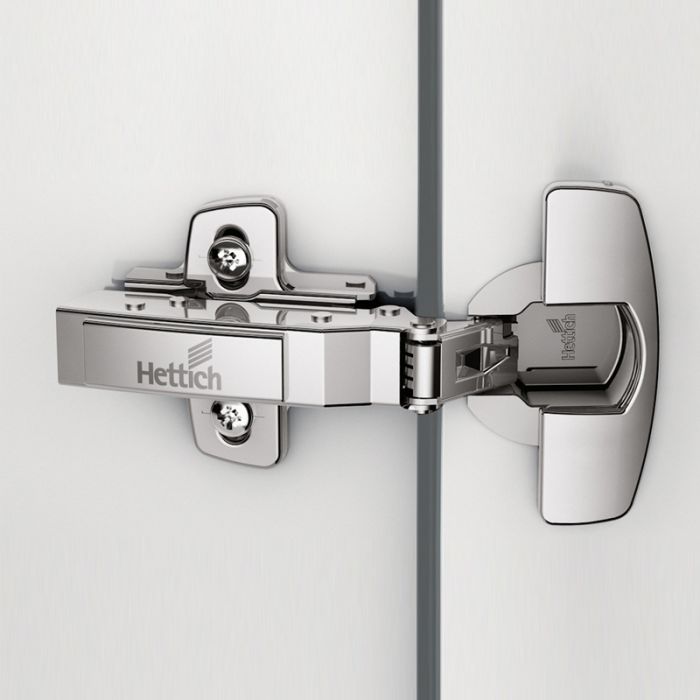

Technical details Design : 90° construction Door type : Standard door / wooden door , - Wood framed door (profile width from 50 mm) - Aluminium framed door (profile width from 50 mm) User friendly features : with integrated silent system Door mounting option : overlay Opening angle : 110 ° Min. door thickness : 15 mm Max. door thickness : 24 mm Cup version : TH 52 Base : 12.5 mm Cup diameter : 35 mm Cup depth : 12.8 mm Type of installation : for screwing on Hinge surface finish : steel nickel plated Drilling pattern : TH 52 x 5,5 mm Diameter of mounting hole : Centre punch Predrilled hole 2.5 mm Ø max. Integrated overlay adjustment : +2 mm / -2 mm Integrated depth adjustment : +3 mm / -2 mm Stay closed function : Yes Finish : nickel plated
