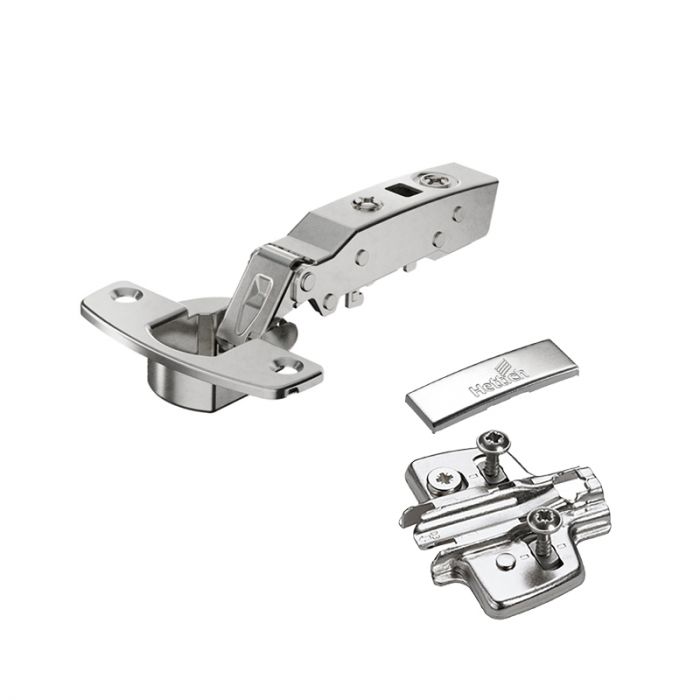

\ Cross mounting plate with Direct height adjustment, nickel plated, Hole line 37 x 32 mm, with chipboard screws (for drilling ø 2.5 mm), distance 1.5 mm, Cabinet body side panel thickness 15 mm \ With integrated Silent System, with self closing feature (Sensys 8645i) \ Quality classification under EN 15570, Level 3 \ Opening angle 110 ° \ Integrated overlay adjustment +2 mm / -2 mm \ Integrated depth adjustment +3 mm / -2 mm \ Height adjustment at mounting plate \ steel nickel plated
Technical details Design : 90° construction Door type : Aluminium framed door / wooden door User friendly features : with integrated silent system Door mounting option : overlay Opening angle : 110 ° Min. door thickness : 15 mm Max. door thickness : 24 mm Cup version : TH 52 Base : 12.5 mm Cup diameter : 35 mm Cup depth : 12.8 mm Type of installation : for screwing on Hinge surface finish : steel nickel plated Drilling pattern : TH 52 x 5,5 mm Diameter of mounting hole : Centre punch Predrilled hole 2.5 mm Ø max. Integrated overlay adjustment : +2 mm / -2 mm Integrated depth adjustment : +3 mm / -2 mm mounting plate Height adjustment : Direct height adjustment mounting plate adjustment range : + 2 mm / - 2 mm Stay closed function : Yes Finish : nickel plated
