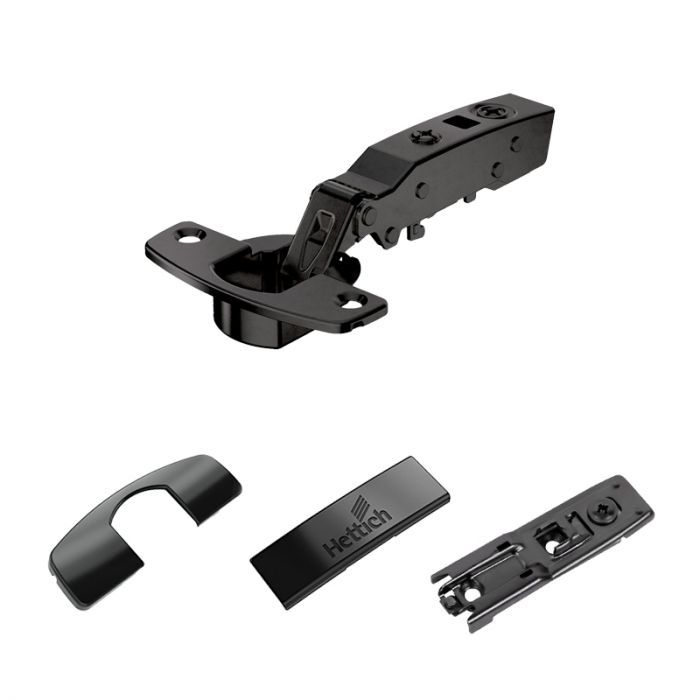

\ Without Silent System, without self closing feature, for handleless applications (Sensys 8675) \ Quality classification under EN 15570, Level 3 \ Opening angle 110 ° \ Door mounting option overlay (B 12.5 mm) \ Integrated overlay adjustment +2 mm / -2 mm \ Integrated depth adjustment +3 mm / -2 mm \ Linear mounting plate with oblong hole height adjustment \ steel in obsidian black
Technical details Design : 90° construction Door type : Standard door / wooden door , - Wood framed door (profile width from 50 mm) - Aluminium framed door (profile width from 50 mm) User friendly features : without self closing feature Door mounting option : overlay Opening angle : 110 ° Min. door thickness : 15 mm Max. door thickness : 24 mm Cup version : TH 52 Base : 12.5 mm Cup diameter : 35 mm Cup depth : 12.8 mm Type of installation : for screwing on Hinge surface finish : steel in obsidian black Drilling pattern : TH 52 x 5,5 mm Diameter of mounting hole : Centre punch Predrilled hole 2.5 mm Ø max. mounting plate Height adjustment : oblong hole height adjustment Stay closed function : no Finish : in obsidian black
