Hinges

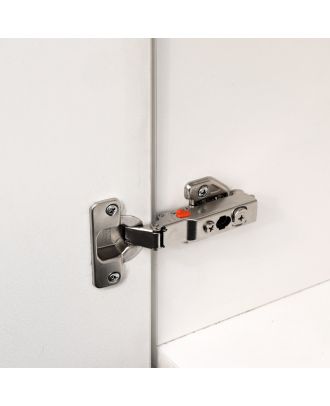

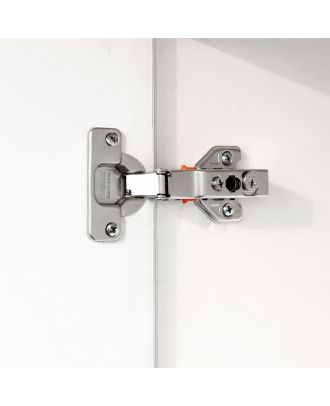

Technical specifications: Installation type : full overlayOpening Angle : 105°Diameter of Hinge Cup : Ø35mmDepth of Hinge Cup : 11.3mmDoor Thickness : 13-23mmDoor(K) Dimension : 3-7mmHole Pitch : 45mm

\ The smooth, soft-close motion of the hinge is the result of a strong damper mechanism that is built into the hinge arm. \ Superb detail and finish, Concealing the damper inside the arm not only enables a larger cylinder than other hinges, but also results in a clean design. \ Doors close smooth and evenly, Having a long piston stroke, the damper’s smooth motion contributes to the customer’s enjoyment of door movement. \ Convenient installation and adjustmentThe effortless, snap connection…

\ With integrated Silent System, with self closing feature (Sensys 8645i)\ Quality classification under EN 15570, Level 3\ Opening angle 110 °\ Door mounting option overlay (B 12.5 mm)\ Integrated overlay adjustment +2 mm / -2 mm\ Integrated depth adjustment +3 mm / -2 mm\ Height adjustment at mounting plate\ steel nickel plated

\ With integrated Silent System, with self closing feature (Sensys 8645i)\ Quality classification under EN 15570, Level 3\ Opening angle 110 °\ Door mounting option overlay (B 12.5 mm)\ Integrated overlay adjustment +2 mm / -2 mm\ Integrated depth adjustment +3 mm / -2 mm\ Cross mounting plate with oblong hole height adjustment adjustment range + 3 mm / - 3 mm, For Hole line 37 x 32 mm, Distance 1.5 mm\ steel in obsidian black
