Hinges

Concealed hinge with clip on installation and integrated Silent SystemQuality classification under EN 15570, Level 3For door thickness of 15 - 24 mmCup diameter 35 mmCup depth 12.8 mmIntegrated + 2 mm / - 2 mm overlay adjustmentIntegrated depth adjustment + 3 mm / - 2 mmHeight adjustment at mounting plateHinge arm material: steelHinge cup material: steel

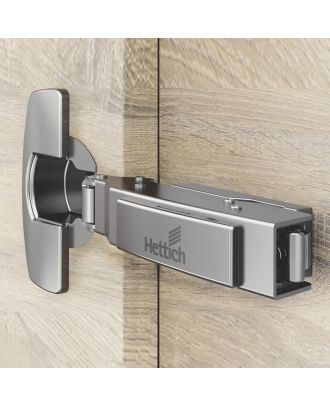

Opening angle: 105 Cup Depth : 11.3 mm Cup diameter : 35 mm Mounting Style : Full overlay Door thickness : 14 mm - 23 mm

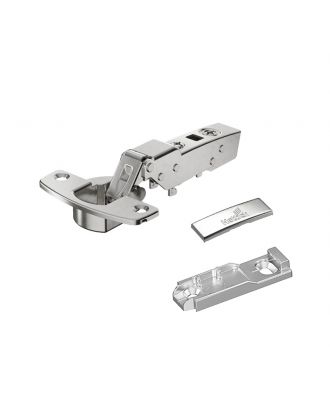

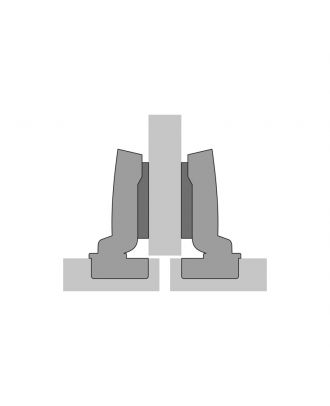

Opening angle: 105 Cup Depth : 11.3 mm Cup diameter : 35 mm Mounting Style : Half overlay Door thickness : 14 mm - 23 mm

Opening angle: 105 Cup Depth : 11.3 mm Cup diameter : 35 mm Mounting Style : Insert overlay Door thickness : 14 mm - 23 mm

Opening angle 45 Cup Depth : 11.3 mm Cup diameter : 35 mm Mounting Style : Insert overlay Door thickness : 14 mm - 23 mm

Opening angle 90 Cup Depth : 11.3 mm Cup diameter : 35 mm Mounting Style : Insert Door thickness : 14 mm - 23 mm

Opening angle 95 Cup Depth : 9.6 mm Cup diameter : 26 mm Mounting Style : Half overlay Door thickness : 14 mm - 22 mm

Opening angle 95 Cup Depth : 9.6 mm Cup diameter : 26 mm Mounting Style : Full overlay Door thickness : 14 mm - 22 mm

Opening angle: 95 Cup Depth : 9.6 mm Cup diameter : 26 mm Mounting Style : Insert Door thickness : 14 mm - 22 mm

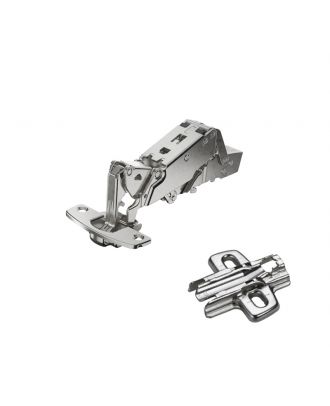

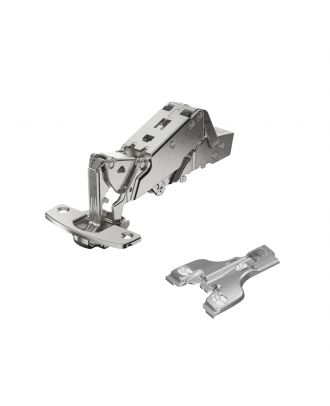

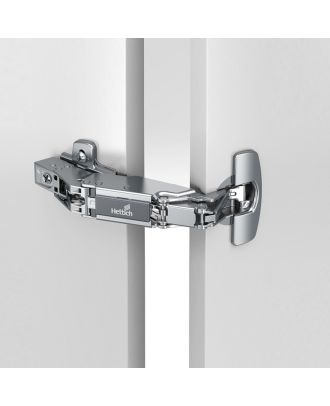

Opening angle: 165 Cup Depth : 11.3 mm Cup diameter : 35 mm Mounting Style : Full overlay Door thickness : 14 mm - 25 mm
