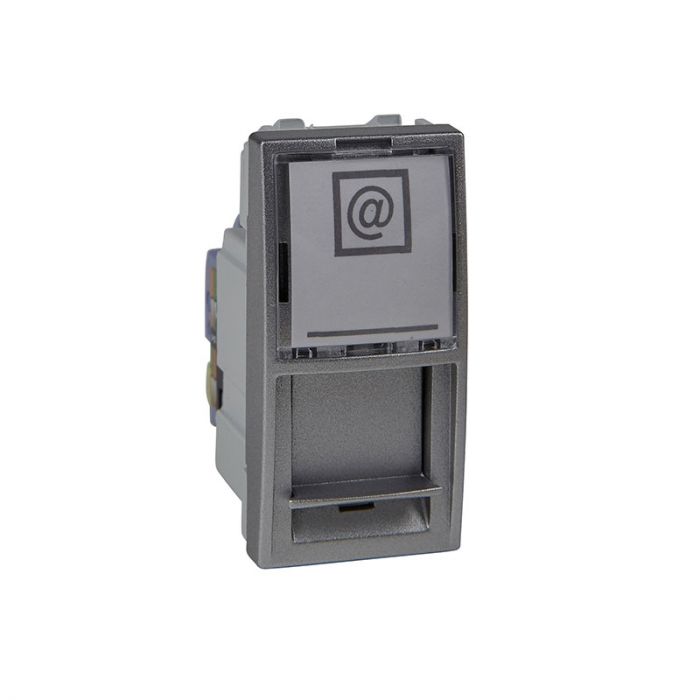

1 Rj45 Socket (S-One) - 1 M -Cat.6, Utp - Aluminium

Product type : RJ45 connector
Device application Communication
Device presentation Mechanism with central plate
Colour : Aluminium
Data socket type RJ45 4 contact(s) Cat.6 < 250 MHz
Provided equipment :
Label holder
Protective flap
Communication network type 1000BASE-TX
Communication port protocol ATM 1200 Mbps
Product destination :
Floor box - Duct
Number of modules 1 module
Socket number 1
Type of footprint : Infraplus
Connector type S-One
Cable shielding type U/UTP
Organization of wire : Unshielded twisted pair
Connections - terminals : Click
Device mounting : Flush
Fixing mode Clip-in
By clips: shield
Installation direction Straight
Material ABS (acrylonitrile butadiene-styrene): mechanism cover
Dimensions : Depth 36 mm X Width 22.5 mm X Height 45 mm
Embedding depth : 25 mm
IP40
IK degree of protection IK01
Ambient air temperature for operation 15…30 °C
Ambient air temperature for storage 0…35 °C
