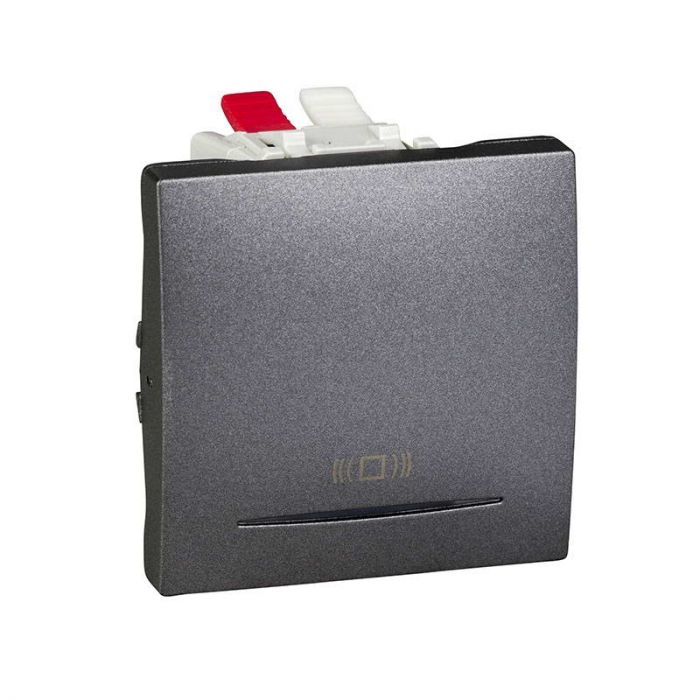

Bell Push-Button - 1-Way - 10 A 250 Vac - 2 M - Graphite

Product type : Switch
Device presentation Mechanism
Switch function 1-pole 1-way
Device application Bell switch
Colour : Graphite
Rated current 10 A at 250 V AC 50/60 Hz
Electrical durability 40000 cycles, cos phi = 0.6
Insulation resistance > 5 MOhm at 500 V
Dielectric strength 2000 V
Minimum load breaking capacity 200 operations 1.25 In and 1.1 Un, cos phi = 0.3
Condition of use Impulse relay control
Opening distance > 3 mm
Actuator Push-button
Number of modules 2 modules
Pilot light LED, colour: blue
current consumption: 0.15 mA, temperature rise: 15 °C
Connections - terminals Screwless terminals
Cable cross section
0…2.5 mm² rigid cable
0…2.5 mm² flexible cable
Material ASA + PC: mechanism cover
ABS (acrylonitrile butadiene-styrene): mechanism cover
Marking Bell symbol
Fixing mode Clip-in
Dimensions :Width 45 mm X Height 45 mm X Depth 34 mm
Embedding depth 22 mm
Product weight 0.023 kg
Ambient air temperature for operation 25…35 °C
Ambient air temperature for storage 0…50 °C
IP20
IK degree of protection IK01
