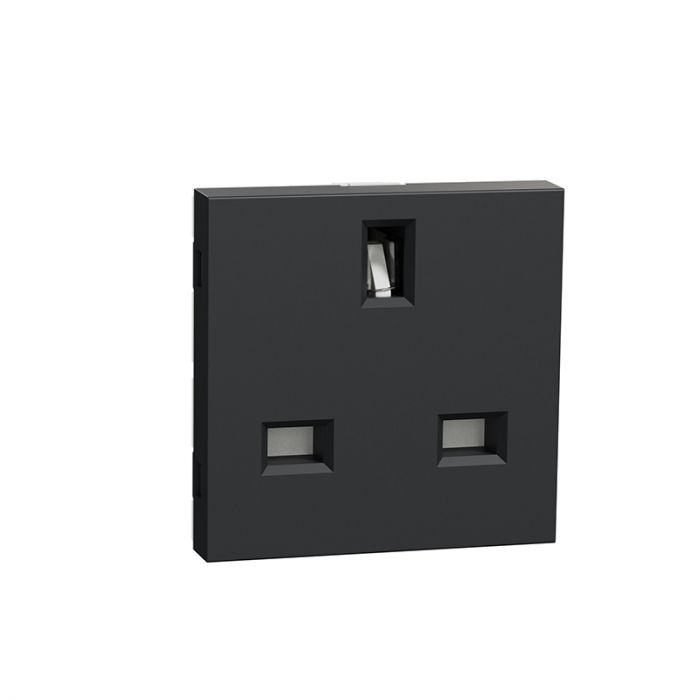

British Socket Outlet, New Unica, Unswitched, 2P+E, 15 A, Anthracite

Range New Unica
Device application Power supply
Product or component type Socket-outlet
Device presentation Mechanism
Socket number 1
Outlet poles configuration 2P + E
Outlet standard British
Outlet standard description Displaced earth
Complementary
Cover type With shutter
Device mounting Flush
Rated current 15 A
[Ue] rated operational voltage 250 V
Network type AC
Network frequency 50/60 Hz
Number of modules 2 modules
Fixing mode Clip-in
Colour tint Anthracite (RAL 7021)
Connections - terminals Screw terminals
Cable cross section 0…4 mm² cable(s), 2 - cable stiffness: flexible
0…4 mm² - cable stiffness: rigid
Minimum load breaking capacity 100 operations 1.25 In and 1.1 Un, cos phi = 0.6
Electrical durability 10000 cycles, cos phi = 0.8
Insulation resistance > 5 MOhm at 500 V
Dielectric strength 2000 V
Material PC: mechanism cover
PC (polycarbonate) GF10 FR: casing
Surface finish Painted
Embedding depth 30 mm
Depth 33 mm
Width 45 mm
Height 45 mm
Net weight 0.0389 kg
