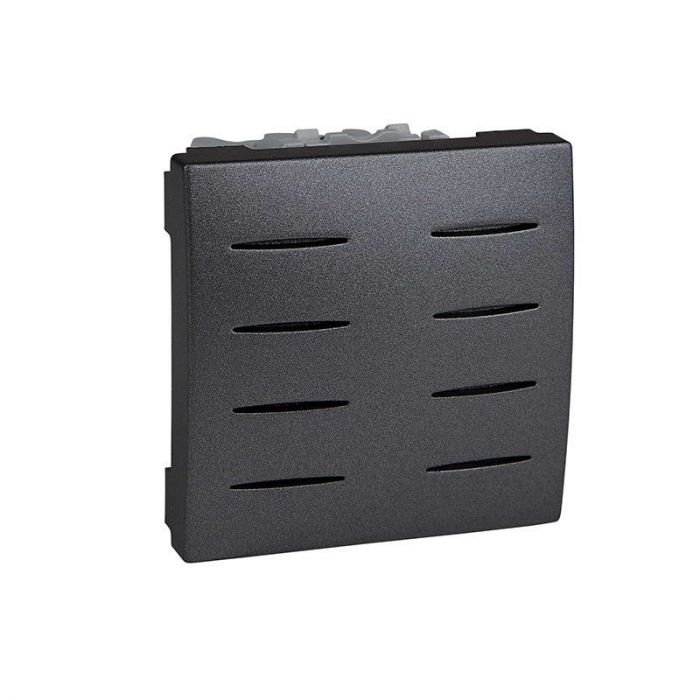

Buzzer - 230V Ac - 2 M - Clip-In - Graphite

Product type : Buzzer
[Ue] rated operational voltage : 230 V AC 50/60 Hz
Number of modules : 2 modules
Fixing mode : Clip-in
Colour : Graphite
Current consumption : 40 mA
Type of setting : Volume can be adjusted using a screw
Operating time : 0...60 ms
Connections - terminals : Screw terminals
Acoustic level : Between 76 and 80 dB
Cable cross section :
0.75…1.5 mm² flexible cable
0.75…1.5 mm² rigid cable
Material ASA + PC: mechanism cover
Standards :
LV directive
EMC directive
CE
Ambient air temperature for operation 15…30 °C
Ambient air temperature for storage 0…35 °C

Dimensions : Depth 42 mm X Width 45 mm X Height 45 mm
Embedding depth 31 mm
Product weight 0.048 kg
IK degree of protection IK01
IP20
