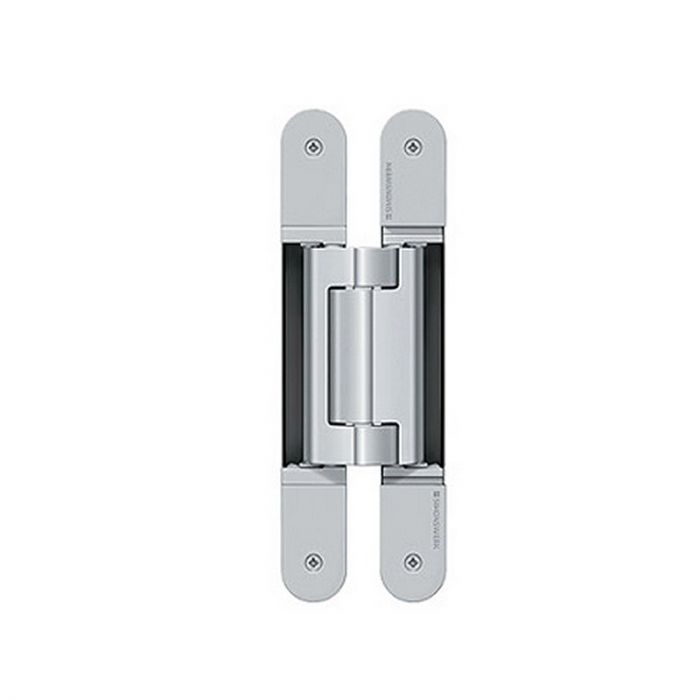

Product features ▪ completely concealed hinge system ▪ for timber, steel or aluminium frames ▪ for unrebated heavy-duty doors ▪ maintenance-free slide bearings ▪ comfortable 3D adjustment (side +/- 3,0 mm, height +/- 3,0 mm, compression +/- 1,0 mm) ▪ sideways closed hinge body for a homogeneous mortise appearance
Technical details Color : Satin Chrome load capacity 200 kg Tow hinges per door leaf (1 x 2 ) overall length 240.0 mm width (door) 32,0 mm width (frame)32,0 mm cutter Ø 24,0 mm opening angle 180° degree
