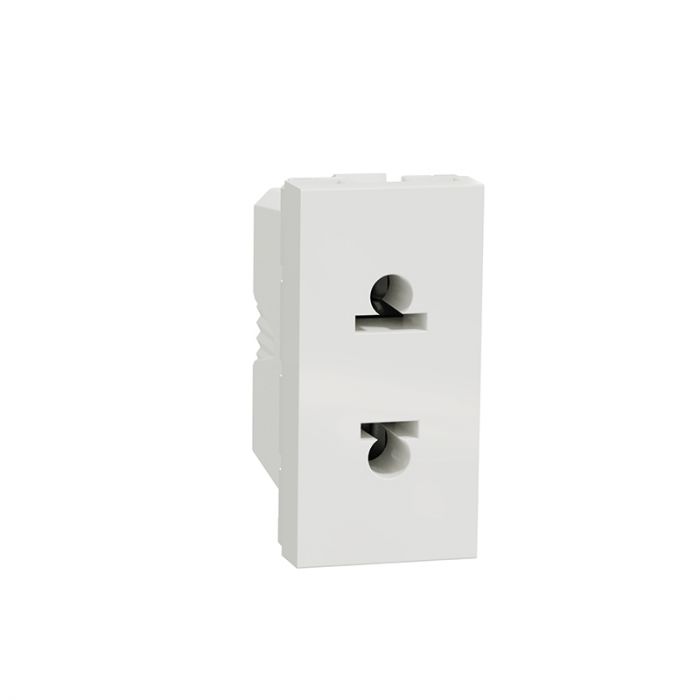

Range New :Unica Device application :Power supply Product or component type :Socket-outlet Device presentation :Mechanism Socket number :1 Outlet poles configuration : 2P Outlet standard :Euroamerican Complementary: Device mounting :Flush Rated current : 16 A [Ue] rated operational voltage : 250 V Network type :AC Network frequency :50/60 Hz Number of modules :1 module Fixing mode : Clip-in Colour tint : White
Range New :Unica Device application :Power supply Product or component type :Socket-outlet Device presentation :Mechanism Socket number :1 Outlet poles configuration : 2P Outlet standard :Euroamerican Complementary: Device mounting :Flush Rated current : 16 A [Ue] rated operational voltage : 250 V Network type :AC Network frequency :50/60 Hz Number of modules :1 module Fixing mode : Clip-in Colour tint : White Connections - terminals : Screw terminals Cable cross section: - 0…4 mm² cable(s), 2 - cable stiffness: flexible - 0…4 mm² - cable stiffness: rigid Minimum load breaking capacity : 100 operations 1.25 In and 1.1 Un, cos phi = 0.6 Electrical durability : 10000 cycles, cos phi = 0.8 Insulation resistance : > 5 MOhm at 500 V Dielectric strength : 2000 V Material : - PC mechanism cover - PC (polycarbonate) GF10 FR: casing Surface finish : Glossy Quantity per set Set of 1 flow-pack Embedding depth 24 mm Depth 35.5 mm Width 22.5 mm Height 45 mm Net weight 0.0169 kg
