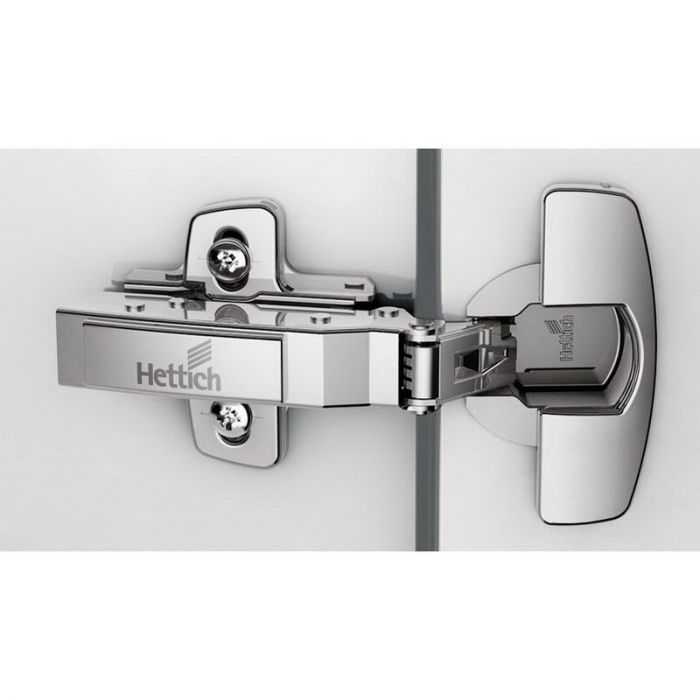

Hinge With Integrated Silent System Half Overlay Opening Angle 110°

Concealed hinge with clip on installation and integrated Silent System
Quality classification under EN 15570, Level 3
For door thickness of 15 - 24 mm
Cup diameter 35 mm
Cup depth 12.8 mm
Integrated + 2 mm / - 2 mm overlay adjustment
Integrated depth adjustment + 3 mm / - 2 mm
Height adjustment at mounting plate
Hinge arm material: steel
Hinge cup material: steel
