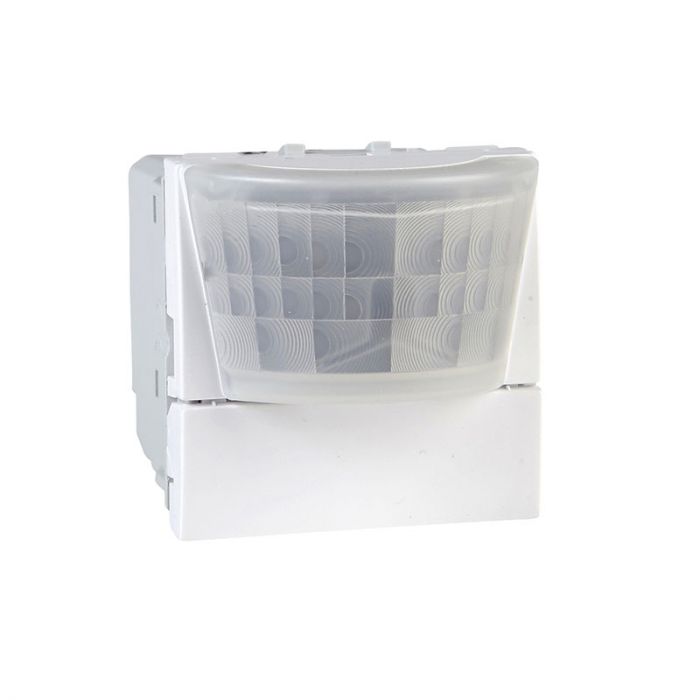

Movement Detector 2300 W -230V Ac - 2 M - White

Product type : Movement detector
Load type:
230 V AC incandescent lamp - 2300 W
230 V AC halogen lamp - 2000 W
Low voltage halogen lamp with wire-wound transformer - 1500 VA
Low voltage lamps with electronic transformer - 1150 VA
230 V AC fan - 200 VA
230 V AC convector - 2300 W
230 V AC contactor - 200 VA
Fluorescent tube (diameter: 26…38 mm): 1 1-10 V dimmable electronic ballast - 2000 VA, cos phi =0.9
Compact fluorescent lamp - 500 VA
Colour : white
Power range : 2300 W
[Ue] rated operational voltage 230 V AC +/- 10 % at 50/60 Hz
Movement detection area:
10 x 20 m (PIR mounting height 2.15 m)
9 x 18 m (PIR mounting height 1.2 m)
Presence detection area :
6 x 12 m (PIR mounting height 2.15 m)
5 x 10 m (PIR mounting height 1.2 m)
Detection angle :
Full 180°
Partial 90° left or right
Selection modes :
S: slave
A: automatic
M: manual
Number of modules : 2 modules
Type of setting : Adjustable disconnection time and brightness
Control type : Manual override with 5 push-buttons maximum
Wiring configuration : 3 wires with neutral
Light intensity adjustment : 5…1000 lux
Time delay range : 2 s...20 min
Clamping connection capacity :
<= 2 x 2.5 mm² for flexible cable(s)
<= 2 x 2.5 mm² for rigid cable(s)
Marking L+N
Connections - terminals : Screw terminals
Material ASA + PC: mechanism cover
Fixing mode Clip-in
Mounting height 1.2…2.15 m
Dimensions : Depth 58 mm X Width 45 mm
Height 45 mm
Embedding depth : 34 mm
Product weight 0.076 kg
IP20
IK degree of protection IK01
Ambient air temperature for operation -5…35 °C
Ambient air temperature for storage -20…55 °C
