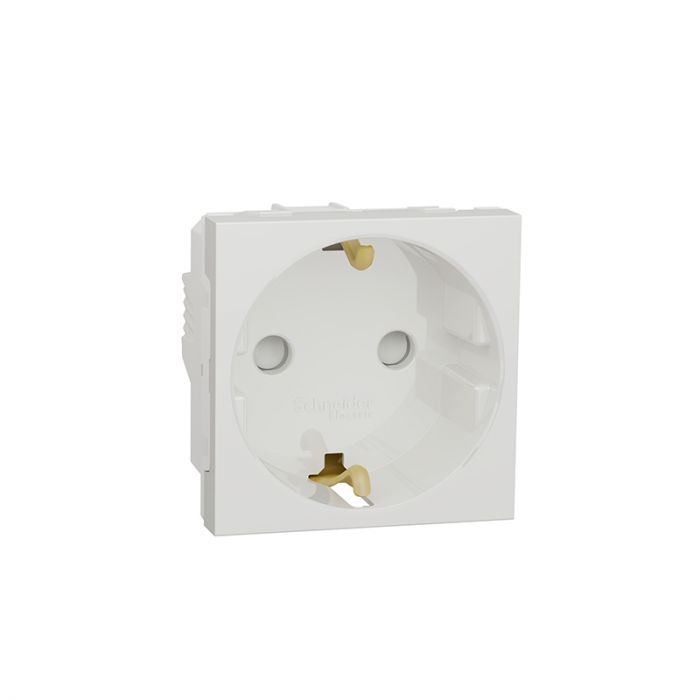

Range New Unica Device application :Power supply Product or component type :Socket-outlet Device presentation :Mechanism Socket number : 1 Outlet poles configuration : 2P + E Outlet standard : Schuko Outlet standard description : Side earth Complementary Cover type : With shutter Device mounting : Flush Rated current : 16 A [Ue] rated operational voltage : 250 V Network type : AC Network frequency : 50/60 Hz Number of modules : 2 modules Fixing mode : Clip-in Colour tint : White
Range New Unica Device application :Power supply Product or component type :Socket-outlet Device presentation :Mechanism Socket number : 1 Outlet poles configuration : 2P + E Outlet standard : Schuko Outlet standard description : Side earth Complementary Cover type : With shutter Device mounting : Flush Rated current : 16 A [Ue] rated operational voltage : 250 V Network type : AC Network frequency : 50/60 Hz Number of modules : 2 modules Fixing mode : Clip-in Colour tint : White Connections - terminals "Screw terminals Cable cross section - 0…4 mm² cable(s), 2 - cable stiffness: flexible - 0…4 mm² cable(s), 2 - cable stiffness: rigid Minimum load breaking capacity : 100 operations 1.25 In and 1.1 Un, cos phi = 0.6 Electrical durability : 10000 cycles, cos phi = 0.8 Insulation resistance : > 5 MOhm at 500 V Dielectric strength : 2000 V Material: -PC: mechanism cover -PC (polycarbonate) GF10 FR: casing CuZn37: terminals CuZn33: earth contact Surface finish Glossy Embedding depth 30.5 mm Depth 40 mm Width 45 mm Height 45 mm Net weight 0.033 kg IK degree of protection IK04 IP degree of protection IP21D
