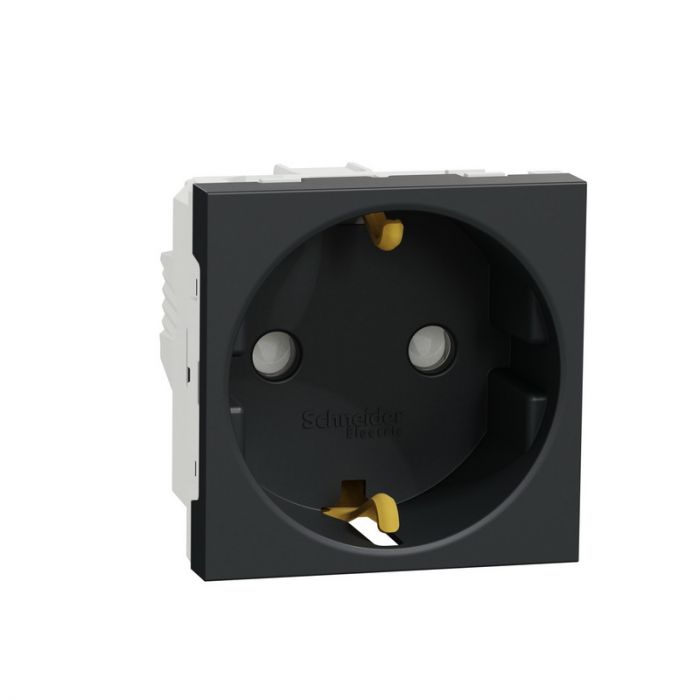

New Unica - 1 German Socket-Outlet - 2P+E + Shutters - 16A 250V - Ip21D - Anth

Range New :Unica
Device application :Power supply
Product or component type :Socket-outlet
Device presentation :Mechanism
Socket number :1
Outlet poles configuration :2P + E
Outlet standard :Schuko
Outlet standard description :Side earth
Complementary:-
Cover type :With shutter
Device mounting :Flush
Rated current :16 A
[Ue] rated operational voltage :250 V
Network type :AC
Network frequency :50/60 Hz
Number of modules :2 modules
Fixing mode :Clip-in
Colour tint :Anthracite (RAL 7021)
Connections - terminals :Screw terminals
Cable cross section:
- 0…4 mm² cable(s), 2 - cable stiffness: flexible
- 0…4 mm² cable(s), 2 - cable stiffness: rigid
Minimum load breaking capacity :100 operations 1.25 In and 1.1 Un, cos phi = 0.6
Electrical durability :10000 cycles, cos phi = 0.8
Insulation resistance :> 5 MOhm at 500 V
Dielectric strength :2000 V
Material:-
- PC: mechanism cover
- PC (polycarbonate) GF10 FR: casing
- CuZn37: terminals
- CuZn33: earth contact
Surface finish :Painted
Embedding depth 30.5 mm
Depth :40 mm
Width :45 mm
Height :45 mm
Net weight :0.033 kg
