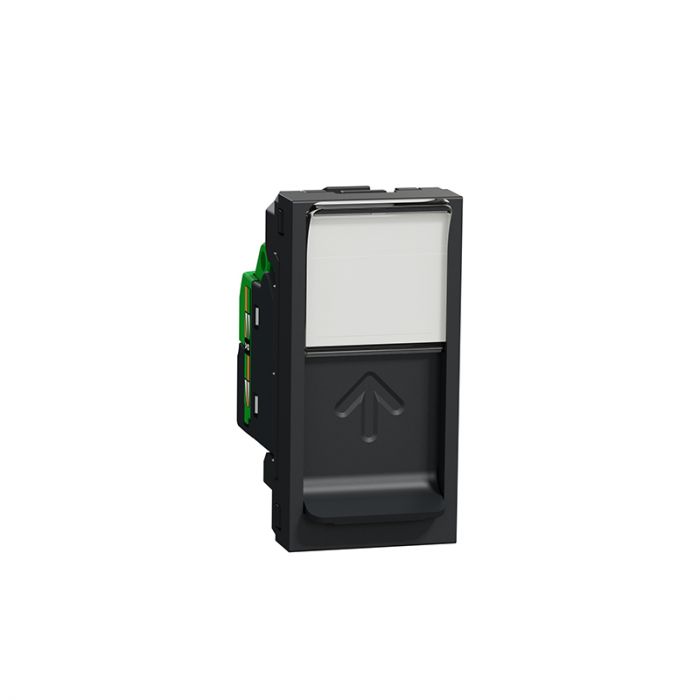

New Unica - 1 X Rj45 Socket - 1 M - Cat. 6 - Utp - Straight - Shutter - Anthra

Range New Unica
Product or component type Data socket
Device application Communication
Device presentation Mechanism
Colour tint Anthracite (RAL 7021)
Data socket type RJ45 8 contact(s) Cat.6 < 250 MHz
Provided equipment Label holder
Protective flap
Complementary
Communication network type 1000BASE-TX
Communication port protocol ATM 1200 Mbps
Number of modules 1 module
Socket number 1
Type of footprint Infraplus
Connector type S-One
Cable shielding type U/UTP
Organization of wire Unshielded twisted pair
Connections - terminals Click
Device mounting Flush
Fixing mode Clip-in
Installation direction Straight
Material Thermoplastic ABS-UV stabilised: central plate
Depth 40.5 mm
Width 22.5 mm
Height 45 mm
Embedding depth 40.5 mm
IP degree of protection IP20
IK degree of protection IK01
