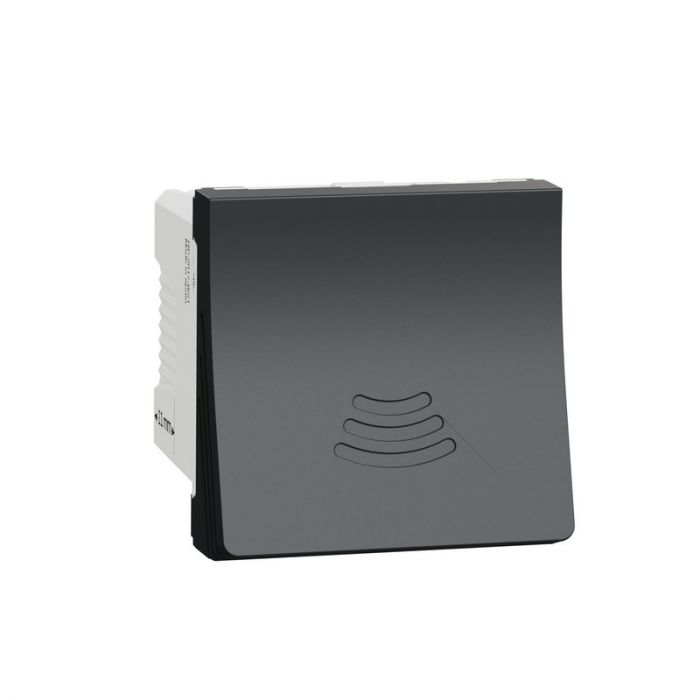

Range New Unica Device application Signalling Product or component type Buzzer Aesthetic name Unica (standard aesthetic) Device presentation Mechanism [Ue] rated operational voltage 230 V AC 50/60 Hz Number of modules 2 modules Fixing mode Clip-in Colour tint Anthracite (RAL 7021) Made in Spain
Range New Unica Device application Signalling Product or component type Buzzer Aesthetic name Unica (standard aesthetic) Device presentation Mechanism [Ue] rated operational voltage 230 V AC 50/60 Hz Number of modules 2 modules Fixing mode Clip-in Colour tint Anthracite (RAL 7021) Complementary Current consumption 40 mA Type of setting Volume can be adjusted using a screw Device mounting Flush Operating time <= 30 ms Connections - terminals Screw terminals Acoustic level Between 76 and 80 dB Cable cross section 0.75…1.5 mm² flexible cable 0.75…1.5 mm² rigid cable Material Thermoplastic ABS-UV stabilised: mechanism rocker PC (polycarbonate) GF10 FR: casing Standards EN 62080 CE Directives 2014/35/EU - low voltage directive Ambient air temperature for operation 15…30 °C Ambient air temperature for storage 0…35 °C Embedding depth 31 mm Depth 50 mm Width 45 mm Height 45 mm Net weight 0.091 kg
