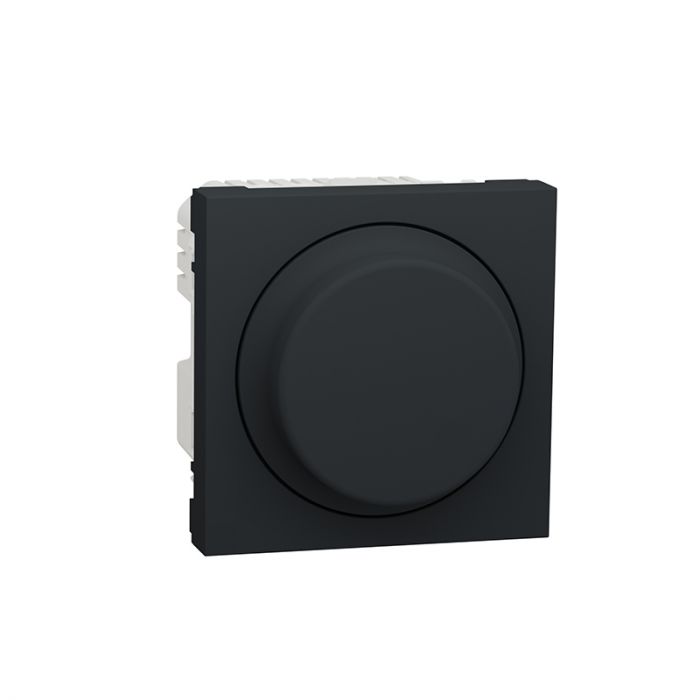

New Unica - Dimmer - Rotary Push Type - Anthracite

Range of product :New Unica
Product or component type :Switch
Device presentation :Mechanism
Technology type :Electromechanical
Switch function :1-pole 1-way
Number of rocker :1
Device application :Light control
Colour tint :Anthracite (RAL 7021)
Type of packing :Flow-pack
Complementary:-
Rated current :32 A
[Ue] rated operational voltage :250 V
Network type :AC
Network frequency :50/60 Hz
Electrical durability :10000 cycles, cos phi = 0.6
Insulation resistance: > 5 MOhm at 500 V
Dielectric strength :2000 V
Minimum load breaking capacity :200 operations 1.25 In and 1.1 Un, cos phi = 0.3
Condition of use :Indoor
Opening distance: > 3 mm
Actuator:Rocker
Number of modules: 2 modules
Pilot light : LED, colour: amber, current consumption: 1 mA, temperature rise: 15 °C
Connections - terminals :Screw terminals
Cable cross section:-
- 0…6 mm² flexible cable
- 0…6 mm² rigid cable
Material:-
- ABS (acrylonitrile butadiene-styrene): mechanism cover
- Surface finish Glossy
Fixing mode :Clip-in
Width :45 mm
Height :45 mm
Depth :41 mm
Embedding depth :30 mm
Net weight :0.039 kg
