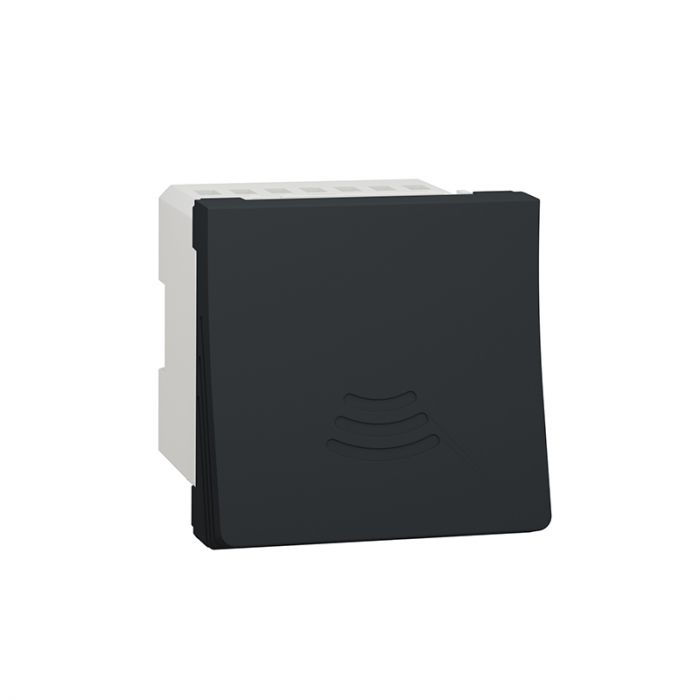

Range New Unica Device application :Signalling Product or component type :Electronic doorbell Device presentation :Mechanism [Ue] rated operational voltage :230 V AC 50/60 Hz Number of modules :2 modules Fixing mode :Screws or claws Colour tint :Anthracite (RAL 7021) Made in Spain
Range New Unica Device application :Signalling Product or component type :Electronic doorbell Device presentation :Mechanism [Ue] rated operational voltage :230 V AC 50/60 Hz Number of modules :2 modules Fixing mode :Screws or claws Colour tint :Anthracite (RAL 7021) Complementary:- Current consumption :14 mA Type of setting: 5 programmable melodies Device mounting :Flush Connections - terminals :Screw terminals Acoustic level :70 dB/1m Cable cross section:- - 0.75…1.5 mm² flexible cable - 0.75…1.5 mm² rigid cable Connected auxiliaries:- - 10 standard push-buttons connected in parallel - 3 indicator lights connected in parallel Material:- -Thermoplastic ABS-UV stabilised: mechanism rocker -PC (polycarbonate) GF10 FR: casing Standards: EN 62080 - CE Ambient air temperature for operation :15…30 °C Ambient air temperature for storage :0…35 °C Embedding depth 31 mm Depth 50 mm Width 45 mm Height 45 mm Net weight 0.046 kg IK degree of protection IK04 IP degree of protection IP20
