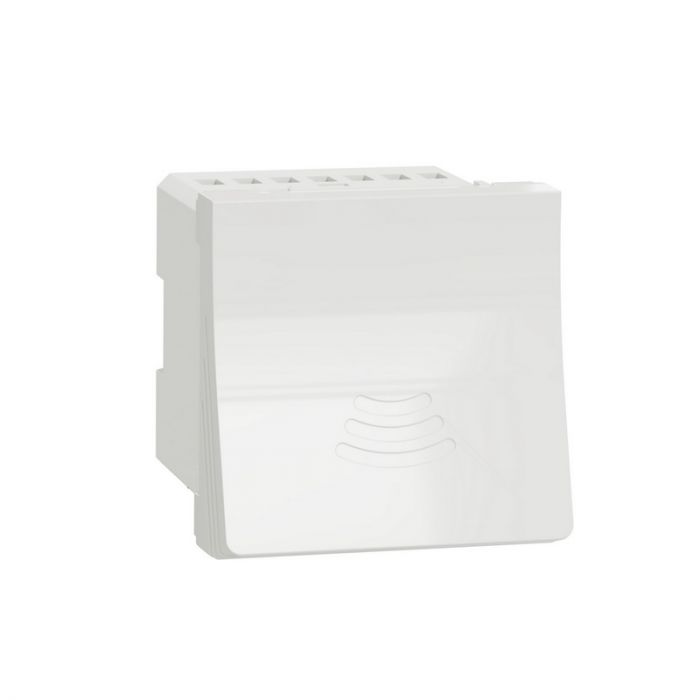

Range New Unica Device application :Signalling Product or component type :Electronic doorbell Device presentation :Mechanism [Ue] rated operational voltage :230 V AC 50/60 Hz Number of modules :2 modules Fixing mode :Screws or claws Colour tint :White (RAL 9003) Made in Spain
Range New Unica Device application :Signalling Product or component type :Electronic doorbell Device presentation :Mechanism [Ue] rated operational voltage :230 V AC 50/60 Hz Number of modules :2 modules Fixing mode :Screws or claws Colour tint :White (RAL 9003) Complementary:. Current consumption :14 mA Type of setting :5 programmable melodies Device mounting :Flush Connections - terminals :Screw terminals Acoustic level :70 dB/1m Cable cross section - 0.75…1.5 mm² flexible cable - 0.75…1.5 mm² rigid cable Connected auxiliaries:. - 3 indicator lights connected in parallel - 10 standard push-buttons connected in parallel Material: - Thermoplastic ABS-UV stabilised: mechanism rocker - PC (polycarbonate) GF10 FR: casing Ambient air temperature for operation : 15…30 °C Ambient air temperature for storage: 0…35 °C Embedding depth 31 mm Depth 50 mm Width 45 mm Height 45 mm IK degree of protection IK04 IP degree of protection IP20
