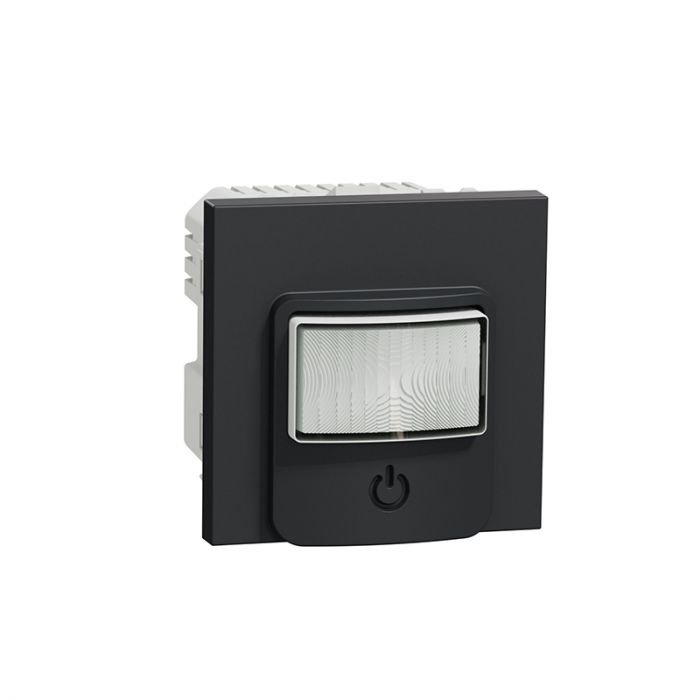

New Unica - Motion Sensor With Push Button Integrated And Relay - Anthracite

Range New Unica
Product or component type :Movement detector
Colour tint :Anthracite (RAL 7021)
Complementary:-
Device presentation :Mechanism
Device mounting :Flush
Fixing mode :By screws
Sensor type :PIR
Load type:-
- Incandescent lamp: 2200 W at 230 V AC
- Halogen lamp: 2000 W at 230 V AC
- LED lamp: 200 W at 230 V AC
- Motor (single-phase): 1000 VA at 230 V AC
- LV halogen lamps: 1050 VA at 12 V AC (electronic transformer)
- LV halogen lamps: 500 VA at 12 V AC (wound transformer)
[Ue] rated operational voltage: 230 V AC 50 Hz
Rated current: 10 A 140 µF - 10 A cos phi = 0.6
Associated fuse rating :16 A
Surface finish :Painted powder coated
Number of modules :2 modules
Number of FUNCTION keys: 1
Local signalling Status: 1 LED (red)
Detection angle: 160° horizontal
Detection face Frontal: 8 m - Lateral: 8 m
Number of outputs: 1
Control type:-
- Manual control
- Local control automatic load detection
- Remote control by auxiliary push-button
Light intensity adjustment: 5…500 lux
Time delay range: 1...30 min
Connected auxiliaries: Unlimited number of push-buttons, distance : 50 m
Provided equipment: User manual
Wiring configuration :With neutral
Connections - terminals: Screw terminal
Number of loop terminals: 2
Clamping connection capacity:
- 1.5...2.5 mm² for solid cable(s)
- 1.5...2.5 mm² for solid stranded cable(s)
Shape of screw head :Pozidriv No 1 and combi
Tightening torque: 0.5 N.m
Material:-
- PC (polycarbonate) GF10 FR: casing
- Metal: terminals
- Thermoplastic ABS-UV stabilised: central plate
Mounting support: Wall
Type of installation: Indoor installation
Quantity per set: 1
Type of packing :Carton
Mounting height 1 m
Embedding depth 29 mm
Depth 44 mm
Width 45 mm
Height 45 mm
Net weight 0.042 kg
IP degree of protection: IP20 - IP21 with marking on visual parts
IK degree of protection IK04
