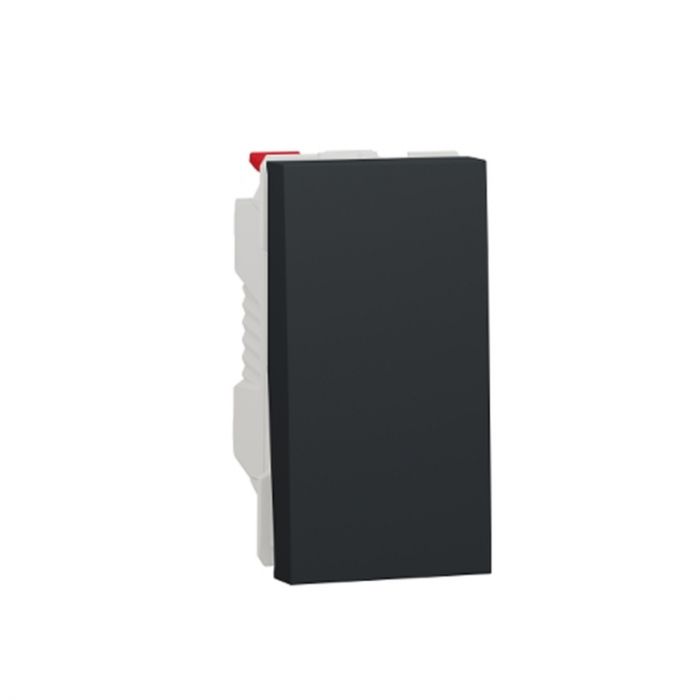

New Unica - One-Way Switch 10A Screwless 1Module Anthracite

Range of product :New Unica
Product or component type: Switch
Device presentation: Mechanism
Technology type: Electromechanical
Switch function: 1-pole 1-way
Number of rocker: 1
Device application: Light control
Colour tint: Anthracite (RAL 7021)
Type of packing: Flow-pack
Complementary:-
Rated current: 10 AX
[Ue] rated operational voltage: 250 V
Network type: AC
Network frequency: 50/60 Hz
Electrical durability: 20000 cycles, cos phi = 0.6
Insulation resistance: > 5 MOhm at 500 V
Dielectric strength :2000 V
Minimum load breaking capacity: 200 operations 1.25 In and 1.1 Un, cos phi = 0.3
Opening distance: > 3 mm
Actuator: Rocker
Number of modules: 1 module
Connections - terminals: Screwless terminals
Cable cross section:-
- 0…2.5 mm² rigid cable
- 0…2.5 mm² flexible cable
Material:-
- Thermoplastic ABS-UV stabilised: mechanism rocker
- PC (polycarbonate) GF10 FR: casing
- CuZn37: terminals
- PBT (polybutylene terephthalate) GF30: release button
Fixing mode: Clip-in
Width 22.5 mm
Height 45 mm
Depth 34.25 mm
Embedding depth 21.15 mm
Net weight 0.0147 kg
