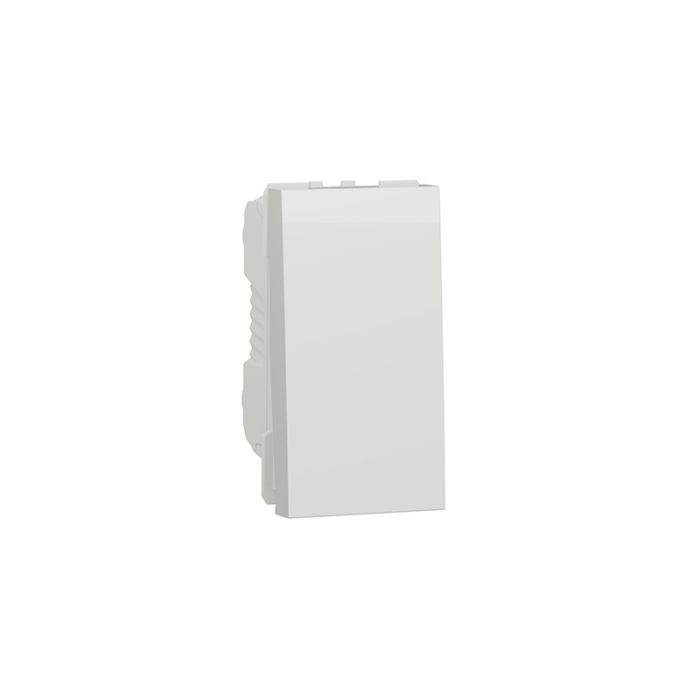

New Unica - One-Way Switch 16A Screws 1Module White

Range of product :New Unica

product or component type :Switch

device presentation : Mechanism

technology type : Electromechanical

switch function : 1-pole 1-way

number of rocker : 1

device application : Light control

colour tint : White (RAL 9003)

type of packing : Flow-pack

Complementary

rated current : 16 AX

[Ue] rated operational voltage : 250 V

network type : AC

network frequency : 50/60 Hz

electrical durability : 20000 cycles, cos phi = 0.6

insulation resistance : > 5 MOhm at 500 V

dielectric strength : 2000 V

minimum load breaking capacity : 200 operations 1.25 In and 1.1 Un, cos phi = 0.3

opening distance : > 3 mm

actuator : Rocker

number of modules : 1 module

connections - terminals : Screw terminals

cable cross section:

-) 0…4 mm² rigid cable

-) 0…4 mm² flexible cable

material:

-)CuZn15: fixed terminals

-)CuZn5 Ag: mobile contact

-)Thermoplastic ABS-UV stabilised: mechanism rocker

-)PC (polycarbonate) GF10 FR: casing



surface finish : Glossy

fixing mode : Clip-in

width : 22.5 mm

height : 45 mm

depth : 34.25 mm

embedding depth : 21.15 mm

net weight : 0.016 kg
