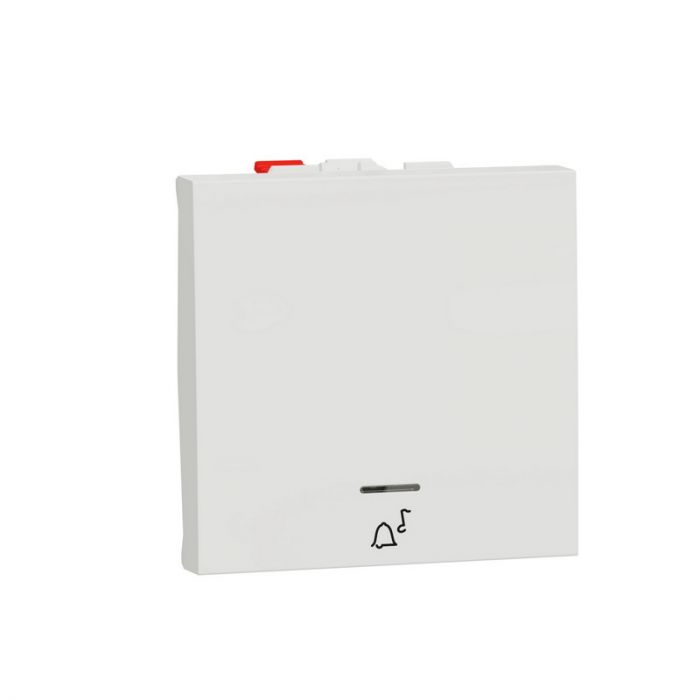

New Unica - Push-Button Switch Bell Symbol + Lamp 10A Screwless - 2M - White

Range of product : New Unica
Product or component type : Push-button
Device presentation : Mechanism
Technology type : Electromechanical
Switch function : + NO push-button
Number of rocker : 1
Device application : Bell switch
Colour tint : White (RAL 9003)
Rated current :10 A
[Ue] rated operational voltage : 250 V
Network type : AC
Network frequency : 50/60 Hz
Electrical durability : 20000 cycles, cos phi = 0.6
Insulation resistance : > 5 MOhm at 500 V
Dielectric strength : 2000 V
Minimum load breaking capacity : 200 operations 1.25 In and 1.1 Un, cos phi = 0.3
Opening distance : > 3 mm
Actuator : Rocker
Number of modules : 2 modules
Pilot light LED, colour: white, current consumption: 0.05 mA
Connections - terminals : Screwless terminals
Cable cross section : 0…2.5 mm² rigid cable
0…2.5 mm² flexible cable
Material : Thermoplastic ABS-UV stabilised: mechanism rocker
PC (polycarbonate) GF10 FR: casing
CuZn37: terminals
PBT (polybutylene terephthalate) GF30: release button
Surface finish : Glossy
Fixing mode : Clip-in
Dimensions :
Width : 45 mm
Height : 45 mm
Depth : 34.25 mm
Embedding depth : 21.15 mm
Net weight : 0.0207 kg
IP degree of protection IP4X
