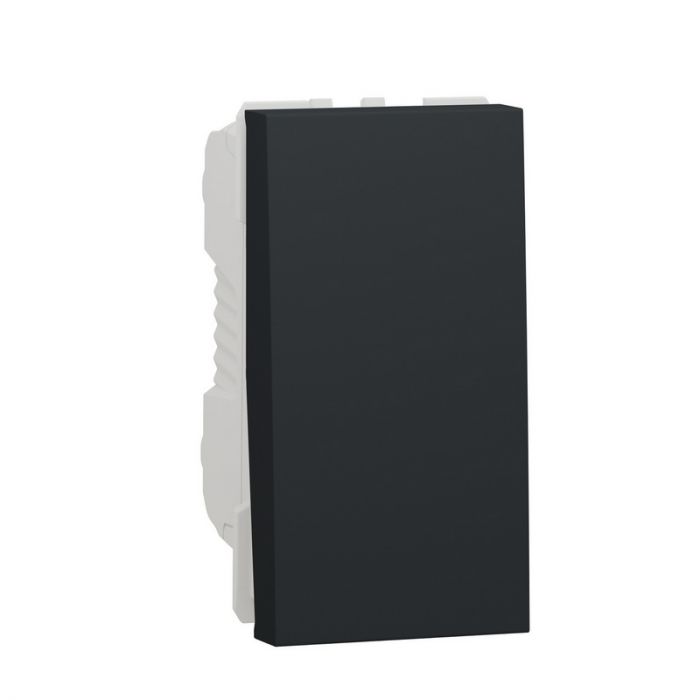

Range of product :New Unica Product or component type :Switch Device presentation :Mechanism Technology type :Electromechanical Switch function :1-pole 2-way Number of rocker :1 Made in Spain
Range of product :New Unica Product or component type :Switch Device presentation :Mechanism Technology type :Electromechanical Switch function :1-pole 2-way Number of rocker :1 Device application :Light control Colour tint :Anthracite (RAL 7021) Type of packing :Flow-pack Complementary:- Rated current :16 AX [Ue] rated operational voltage :250 V Network type :AC Network frequency :50/60 Hz Electrical durability :20000 cycles, cos phi = 0.6 Insulation resistance :> 5 MOhm at 500 V Dielectric strength :2000 V Minimum load breaking capacity :200 operations 1.25 In and 1.1 Un, cos phi = 0.3 Opening distance :> 3 mm Actuator :Rocker Number of modules :1 module Connections - terminals :Screw terminals Cable cross section:- - 0…4 mm² rigid cable - 0…4 mm² flexible cable Material:- - CuZn15: fixed terminals - CuZn5 Ag: mobile contact - Thermoplastic ABS-UV stabilised: mechanism rocker - PC (polycarbonate) GF10 FR: casing Fixing mode :Clip-in Width :22.5 mm Height :45 mm Depth :34.25 mm Embedding depth :21.15 mm Net weight :0.0179 kg
