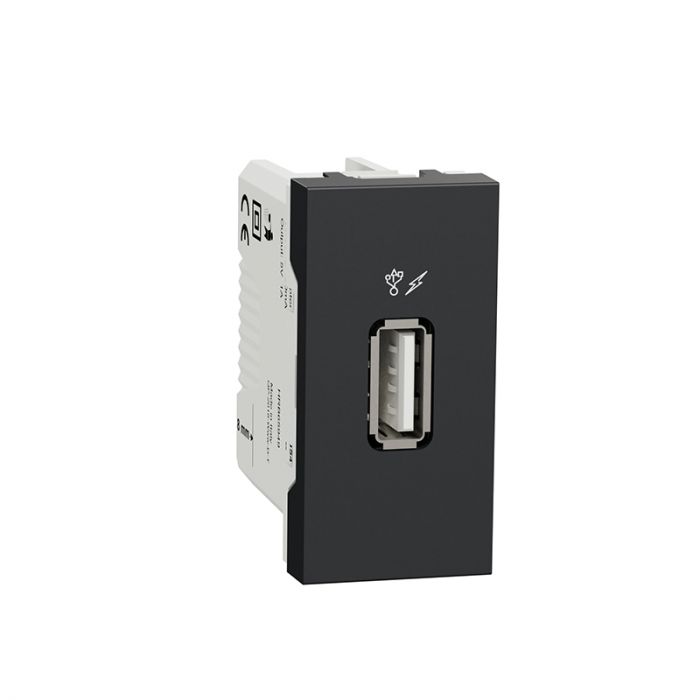

Range New Unica Product or component type :USB charger Device presentation :Mechanism Complementary:- Device application :Charger Device mounting :Flush Number of modules :1 module Type of USB power supply :USB type A Colour tint :Anthracite (RAL 7021) Surface finish :Painted powder coated [Ue] rated operational voltage :100...240 V AC 50/60 Hz Nominal output power :5 W Input power :7.5 W Socket number :1 Integrated connection type: 1 USB type A 5 V DC, maximum load current: 1 A Made in Spain
Range New Unica Product or component type :USB charger Device presentation :Mechanism Complementary:- Device application :Charger Device mounting :Flush Number of modules :1 module Type of USB power supply :USB type A Colour tint :Anthracite (RAL 7021) Surface finish :Painted powder coated [Ue] rated operational voltage :100...240 V AC 50/60 Hz Nominal output power :5 W Input power :7.5 W Socket number :1 Integrated connection type: 1 USB type A 5 V DC, maximum load current: 1 A Material: - PC (polycarbonate) GF10 FR: casing - PC (polycarbonate) GF10 FR: internal cover - Thermoplastic ABS-UV stabilised: centre plate Protection type : Short-circuit protection Number of terminals :2 screw terminals Shape of screw head :Pozidriv No 1 Clamping connection capacity - 1.5...2.5 mm² for rigid cable(s) - 1.5...2.5 mm² for flexible cable(s) Wire stripping length :8 mm Product compatibility :All devices fulfilling the EN 62684 standard Fixing mode :Clip-in Type of packing :Flow-pack Ambient air temperature foroperation: 5…45 °C Ambient air temperature for storage: -5…50 °C Height 45 mm Width 22.5 mm Depth 42 mm Embedding depth 30.8 mm Net weight 0.03 kg Electrical insulation class: Class II IK degree of protection: IK04 IP degree of protection: IP2xC
