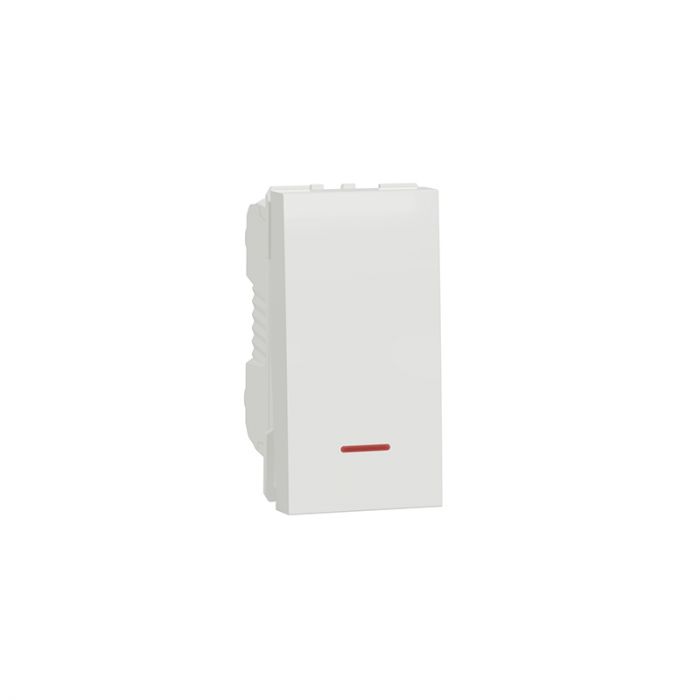

Range of product : New Unica product or component type : Switch device presentation : Mechanism technology type "Electromechanical switch function : 1-pole 1-way number of rocker : 1 device application : Light control provided equipment : LED colour tint : White (RAL 9003) Made in Spain
Range of product : New Unica product or component type : Switch device presentation : Mechanism technology type "Electromechanical switch function : 1-pole 1-way number of rocker : 1 device application : Light control provided equipment : LED colour tint : White (RAL 9003) type of packing : Flow-pack Complementary : rated current : 16 A - 16 AX [Ue] rated operational voltage : 250 V network type AC network frequency : 50/60 Hz electrical durability : -) 5000 cycles -) 20000 cycles, cos phi = 0.6 insulation resistance : > 5 MOhm at 500 V dielectric strength : 2000 V minimum load breaking capacity : 200 operations 1.25 In and 1.1 Un, cos phi = 0.3 condition of use : Indoor opening distance : > 3 mm actuator : Rocker number of modules : 1 module - pilot light -)LED, colour: amber, current consumption: 0.15 mA, temperature rise: 15 °C -)LED, colour: red, current consumption: 1.5 mA, temperature rise: 15 °C connections - terminals : Screw terminals -cable cross section: -) 0…4 mm² rigid cable -) 0…4 mm² flexible cable -material -)ASA + PC: mechanism cover -)ABS (acrylonitrile butadiene-styrene): mechanism cover surface finish : Glossy specific treatment - integrated within the material : Untreated fixing mode : Clip-in width : 22.5 mm height : 45 mm depth : 34.25 mm embedding depth : 21.15 mm net weight : 0.0239 kg
