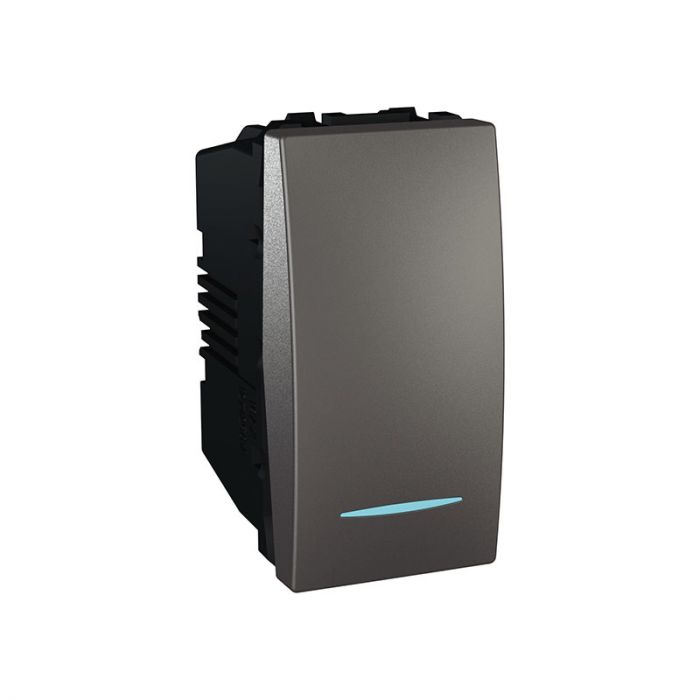

Rocker Switch - 1-Way - 16 Ax 250 Vac - 1 M - Graphite

Product type : Switch
Switch function 1-pole 1-way
Device application Control
Colour : Graphite
Rated current 16 AX at 250 V AC 50/60 Hz
Electrical durability 5000 cycles
Insulation resistance > 5 MOhm at 500 V
Dielectric strength 2000 V
Minimum load breaking capacity 200 operations 1.25 In and 1.1 Un, cos phi = 0.3
Opening distance > 3 mm
Actuator Rocker
Number of modules 1 module
Pilot light LED, colour: blue
current consumption: 0.15 mA, temperature rise: 15 °C
Connections - terminals Screw terminals
Cable cross section
0…4 mm² rigid cable
0…4 mm² flexible cable
Material ABS (acrylonitrile butadiene-styrene): mechanism cover
Fixing mode Clip-in
Dimensions : Width 22.5 mm X Height 45 mm X Depth 33 mm
Embedding depth 21 mm
Product weight 0.024 kg
Ambient air temperature for operation 25…35 °C
Ambient air temperature for storage 0…50 °C
IP20
IK degree of protection IK01
