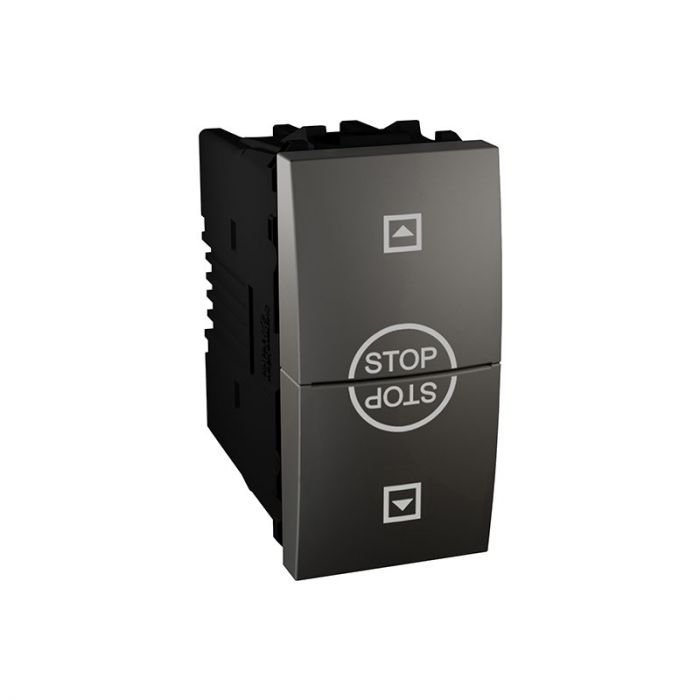

Rocker Switch - 10 A, 250 Vac - 1 M - Graphite

Product type : Switch
Switch function 2-way
Switch application Roller blind
Rated current 10 A at 250 V AC 50/60 Hz
Actuator Rocker
Number of modules 1 module
Fixing mode Clip-in
Cover plate colour : Graphite
Contacts type and composition 1 C/O
Mechanical interlocking Interlock between up/down
[Iu] rated interrupted current 2.5 A for motor
Opening distance > 3 mm
Marking : Down - UP
Connections - terminals Screw terminals
Cable cross section
2.5 mm² flexible cable
2.5 mm² rigid cable
Minimum load breaking capacity 200 operations 1.25 In and 1.1 Un, cos phi = 0.3
Electrical durability 40000 cycles, cos phi = 0.6
Insulation resistance > 5 MOhm at 500 V
Dielectric strength 2000 V
Material ASA + PC: mechanism cover
Ambient air temperature for operation 25…35 °C
Ambient air temperature for storage 0…50 °C
Dimensions :
Embedding depth 21 mm
Depth : 33 mm
IK degree of protection IK01
IP20
