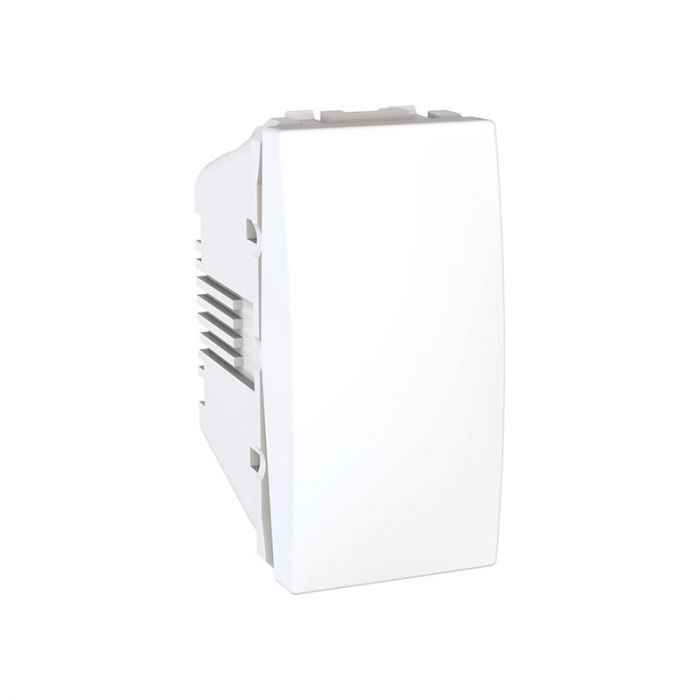

Rocker Switch - Intermediate - 10 Ax 250 Vac - 1 M - White

Product type : Switch
Switch function Intermediate
Device application Control
Colour : White
Rated current 10 AX at 250 V AC 50/60 Hz
Electrical durability 10000 cycles
Insulation resistance > 5 MOhm at 500 V
Dielectric strength 2000 V
Minimum load breaking capacity 200 operations 1.25 In and 1.1 Un, cos phi = 0.3
Opening distance > 3 mm
Actuator Rocker
Number of modules 1 module
Connections - terminals Screw terminals
Cable cross section
0…2.5 mm² rigid cable
0…2.5 mm² flexible cable
Material ASA + PC: mechanism cover
Fixing mode Clip-in
Dimensions : Width 22.5 mm X Height 45 mm X Depth 34 mm
Embedding depth 22 mm
Product weight 0.026 kg
Ambient air temperature for operation 25…35 °C
Ambient air temperature for storage 0…50 °C
IP20
IK degree of protection IK01
