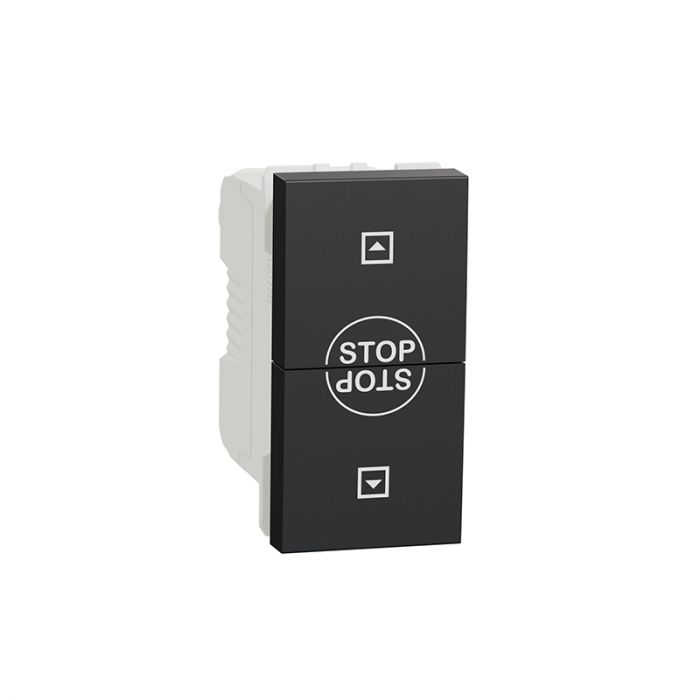

Roller Blind Pushbutton Switch, New Unica, 10 Ax, 250 V, Ac, 1 Module, Anthracite

Range of product: New Unica
Product or component type: Switch
Device presentation: Mechanism
Technology type: Electromechanical
Switch function: 1-pole 1-way
Number of rocker: 1
Device application :Light control
Colour tint :Anthracite (RAL 7021)
Type of packing :Flow-pack
Complementary:-
Rated current: 32 A
[Ue] rated operational voltage: 250 V
Network type: AC
Network frequency: 50/60 Hz
Electrical durability: 10000 cycles, cos phi = 0.6
Insulation resistance: > 5 MOhm at 500 V
Dielectric strength: 2000 V
Minimum load breaking capacity: 200 operations 1.25 In and 1.1 Un, cos phi = 0.3
Condition of use: Indoor
Opening distance: > 3 mm
Actuator :Rocker
Number of modules :2 modules
Pilot light LED, colour: amber, current consumption: 1 mA, temperature rise: 15 °C
Connections - terminals :Screw terminals
Cable cross section:-
- 0…6 mm² flexible cable
- 0…6 mm² rigid cable
Material: ABS (acrylonitrile butadiene-styrene): mechanism cover
Surface finish :Glossy
Fixing mode :Clip-in
Width :45 mm
Height :45 mm
Depth :41 mm
Embedding depth :30 mm
Net weight :0.039 kg
