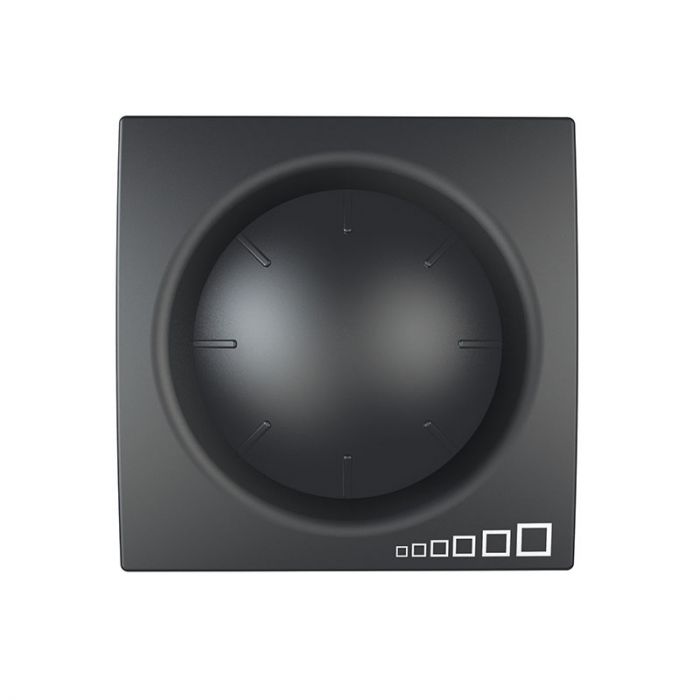

Rotary Dimmer - 230 Vac -40...400 W/Va - Graphite

Product type : Rotary dimmer
Fixing mode Clip-in
Dimmer application : Inductive load-Resistive load
[Ue] rated operational voltage 230 V AC 50 Hz
Number of modules :2 modules
Colour : Graphite
Dimmer control :
ON/OFF push
270° rotary setting
Maximum permanent current 1.74 A
Total number of wires 2
Load type :
230 V AC halogen lamp - 40...400 W
230 V AC incandescent lamp - 40...400 W
Low voltage halogen lamp with ferromagnetic transformer - 40...400 VA
Protection type : Fuse protection
Fuse type : 4 Ah 5 x 20 mm 230 V 50 Hz
Marking L+N
Connections - terminals Screw terminals
Clamping connection capacity <= 2 x 2.5 mm²
Connected auxiliaries 2-way switch
Material ASA + PC: mechanism cover
Ambient air temperature for operation 5…30 °C
Ambient air temperature for storage -20…60 °C
Dimensions : Depth 54 mm X Width 45 mm X Height 45 mm
Embedding depth 34 mm
Product weight 0.071 kg
IK degree of protection IK01
IP20
