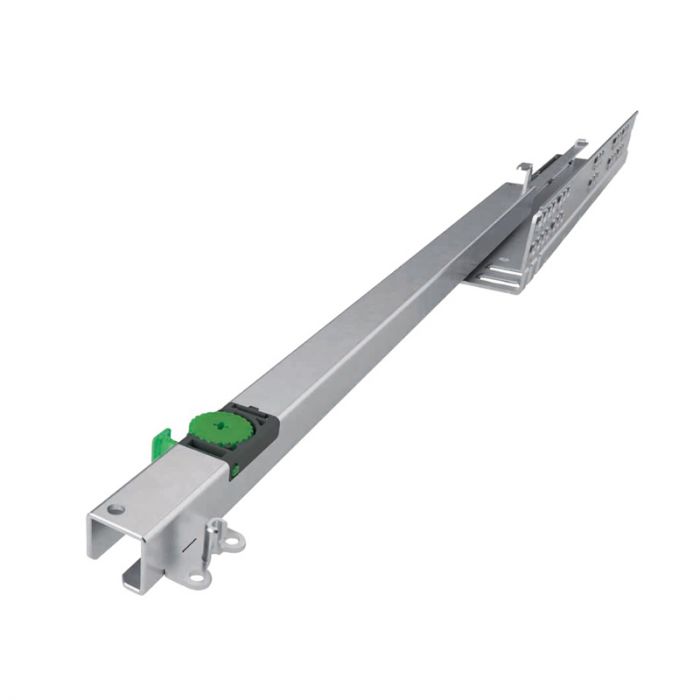

Self closing slide-drawer Single extension 50 cm
Quick Overview
Technical Specifications:
• Standard depth 50 cm
• Small extraction loss due to compact build
• Very tolerant due to built in flexibility
• Simple Plug-In assembly for ease of manufacturing
• Comfortable large wheel height adjustment
• Excellent load ability with 30 kg dynamic standard
capacity throughout the range
• Anti-Lift device pre-assembled
• Lasting quality thanks to optimised materials
• Pair of sliding left & right
Reasons to choose Excel G slide:
The slide structure has been improved with a range of technical details that enhance its reliability and performance:
\ Concealed mounting
\ Single extension
\ New bearings for a more silent sliding
\ A stronger activator for a greater stability of the damped system
\ Increased resistance of the back hook for a highly stable slide-drawer coupling
Drawer dimensions and drilling :
Slide length (L) : 510 mm
Drawer depth (A) : 500 mm
Anti-lift hole (X) : 340 mm
Plug-in hole (Y) : 360 mm
| Brand | FGV |
|---|---|
| MADE IN | Italy |
