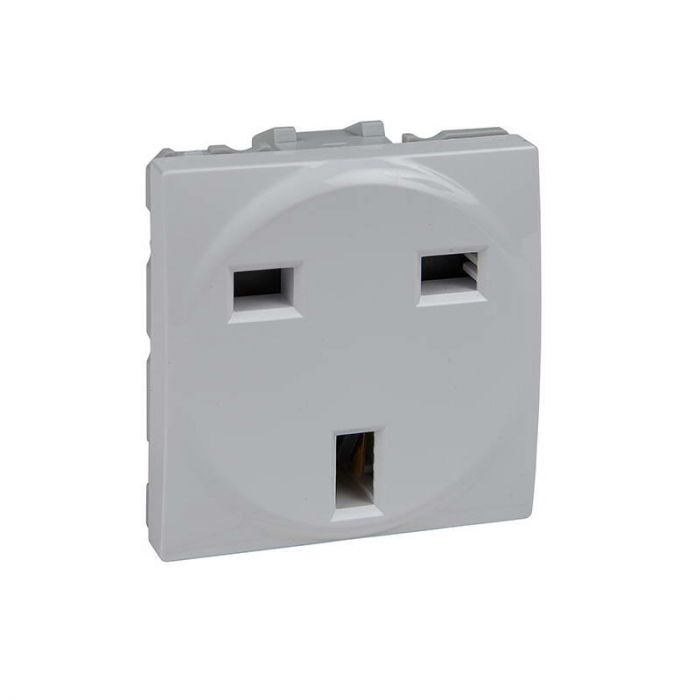

Socket-Outlet 1 S.O. - 2P+E, Shutters, Uk - 2 M - White

Product type Socket-outlet
Socket number 1
Outlet poles configuration 2P + E with shutters
Outlet standard description Displaced earth
Rated current 13 A at 250 V AC
Network frequency 50/60 Hz
Number of modules 2 modules
Fixing mode Clip-in
Colour : White
Connections - terminals Screw terminals
Cable cross section
0…4 mm² - cable stiffness: flexible
0…4 mm² - cable stiffness: rigid
Minimum load breaking capacity 100 operations 1.25 In and 1.1 Un, cos phi = 0.6
Electrical durability 10000 cycles, cos phi = 0.8
Insulation resistance > 5 MOhm at 500 V
Dielectric strength 2000 V
Material ASA + PC: mechanism cover
Embedding depth : 30 mm
Dimension: Depth 33 mm X Width 45 mm X Height 45 mm
Product weight 0.0389 kg
Ambient air temperature for operation 15…30 °C
