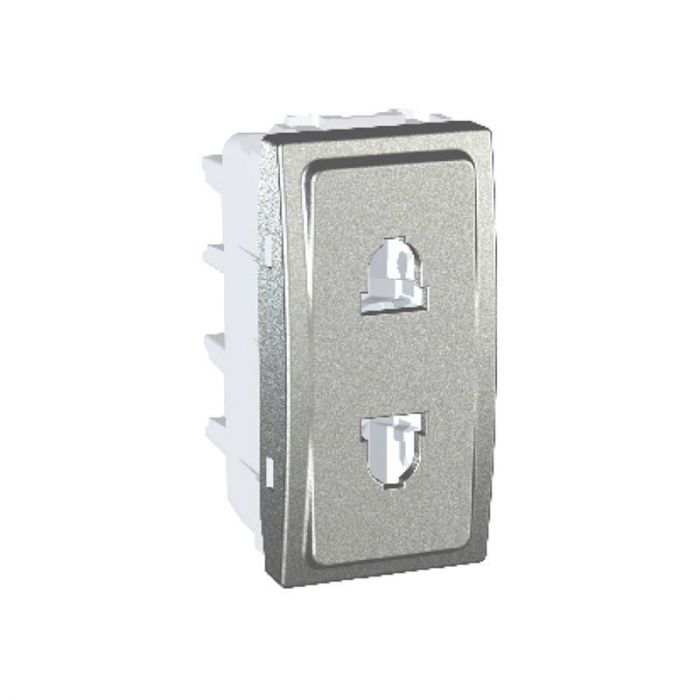

Socket-Outlet 1 S.O. - 2P, Shutters, Eu/Us - 1 M - Aluminium

Product type : Socket-outlet
Socket number 1
Outlet poles configuration 2P with shutters
Outlet standard : Euroamerican
Rated current 16 A at 250 V AC
15 A at 127 V AC
Network frequency 50/60 Hz
Number of modules 1 module
Fixing mode Clip-in
Colour : Aluminium
Connections - terminals Screw terminals
Cable cross section 0…4 mm² - cable stiffness: flexible
0…4 mm² - cable stiffness: rigid
Minimum load breaking capacity 100 operations 1.25 In and 1.1 Un, cos phi = 0.6
Electrical durability 10000 cycles, cos phi = 0.8
Insulation resistance > 5 MOhm at 500 V
Dielectric strength 2000 V
Material ASA + PC: mechanism cover
embedding depth : 24 mm
Dimension : Depth 33 mm X Width 22.5 mm X Height 45 mm
Product weight 0.0206 kg
Ambient air temperature for operation 15…30 °C
Ambient air temperature for storage 0…35 °C
IK degree of protection IK01
IP20
