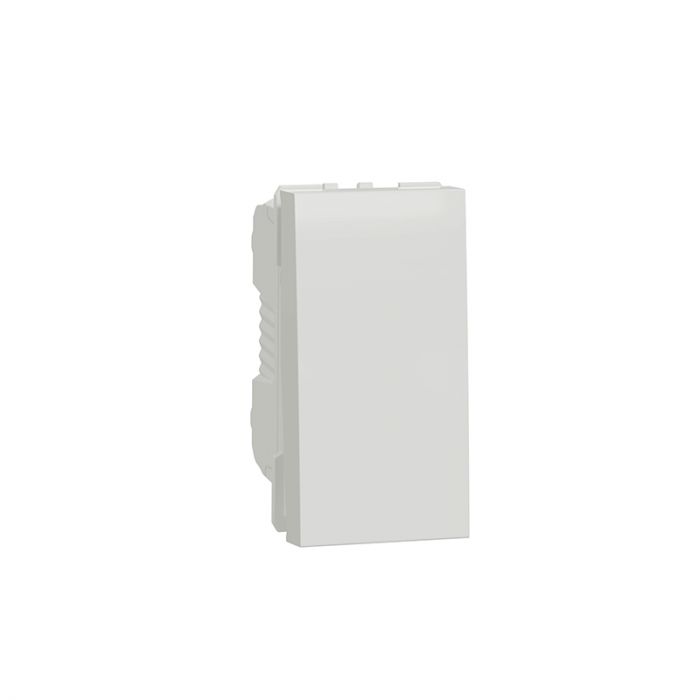

Two Way Switch, New Unica, 10 A, 1 Module, White

Range of product : New Unica
product or component type : Switch
device presentation : Mechanism
technology type "Electromechanical
switch function : 1-pole 2-way
number of rocker : 1
device application : Light control
colour tint : White (RAL 9003)
type of packing : Flow-pack
Complementary :
rated current : 10 A - 10 AX
[Ue] rated operational voltage : 250 V
network type: AC
network frequency : 50/60 Hz
electrical durability :
-)10000 cycles
-)20000 cycles, cos phi = 0.6
insulation resistance : > 5 MOhm at 500 V
dielectric strength : 2000 V
minimum load breaking capacity : 200 operations 1.25 In and 1.1 Un, cos phi = 0.3
condition of use : Indoor
opening distance : > 3 mm
actuator : Rocker
number of modules : 1 module
connections - terminals : Screw terminals
cable cross section:
-)0…2.5 mm² rigid cable
-)0…2.5 mm² flexible cable
material
-)ASA + PC: mechanism cover
-)ABS (acrylonitrile butadiene-styrene): mechanism cover
surface finish : Glossy
specific treatment - integrated within the material : Untreated
fixing mode : Clip-in
width : 22.5 mm
height : 45 mm
depth : 34.25 mm
embedding depth : 21.15 mm
net weight : 0.0211 kg
