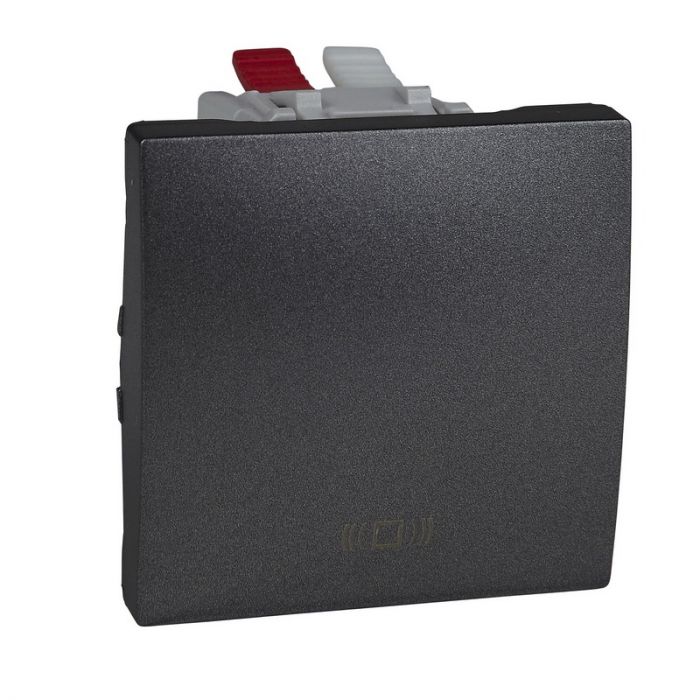

Unica Top/Class - Push-Button - 1-Way - 10 A 250 Vac - 2 M - Graph.

Range of product: Unica
Aesthetic name: Unica Top - Unica Class
Product or component type: Push-button
Device presentation: Mechanism
Technology type: Electromechanical
Switch function: 1-pole 1-way
Number of rocker: 1
Device application: Bell switch
Colour tint: Graphite
Complementary:-
Rated current: 10 A
[Ue] rated operational voltage: 250 V
Network type: AC
Network frequency: 50/60 Hz
Electrical durability: 40000 cycles, cos phi = 0.6
Insulation resistance: > 5 MOhm at 500 V
Dielectric strength: 2000 V
Minimum load breaking capacity: 200 operations 1.25 In and 1.1 Un, cos phi = 0.3
Condition of use: Impulse relay control
Opening distance: > 3 mm
Actuator: Push-button
Number of modules: 2 modules
Connections - terminals: Screwless terminals
Cable cross section:
- 0…2.5 mm² rigid cable
- 0…2.5 mm² flexible cable
Material:
- ASA + PC: mechanism cover
- ABS (acrylonitrile butadiene-styrene): mechanism cover
Marking: Bell symbol
Fixing mode: Clip-in
Width 45 mm
Height 45 mm
Depth 34 mm
Embedding depth 22 mm
Net weight 0.0203 kg
