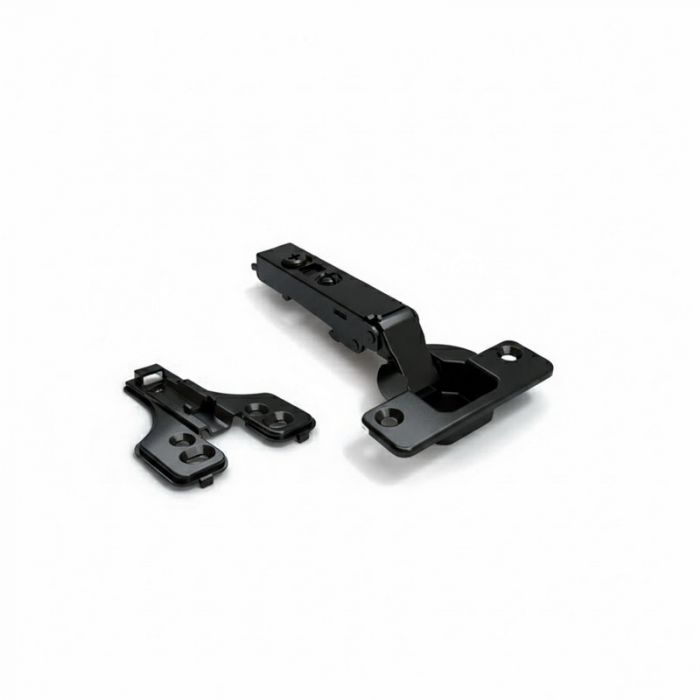

Features : ■ Damping technology with hidden micro-damper. ■ Available cup with 48 mm drilling pattern. ■ Cup diameter 35 mm ■ Steel mounting plate, vertical adjustment by CAM; 37x32 pattern. ■ Frontal adjustment BY CAM - 0/+5 mm. ■ Lateral overlay adjustment -1/+5 mm. ■ In addition to vertical adjustment on mounting plate.
Material : Steel hinge & cup. Crank : Straight. Opening angle : 105°, or 90° with LIMITER ( separate accessory ). Steel cup; self-cutting screws fastener, drilling pattern 35 mm. Dimensions : As dimensions pic. Finish : galvanic Anthracite.
** Optional : LIMITER, This accessory is used to limit the opening of the door to 90°.Easily inserted into hinges with 105° opening.CODE 046399025 order separately.
