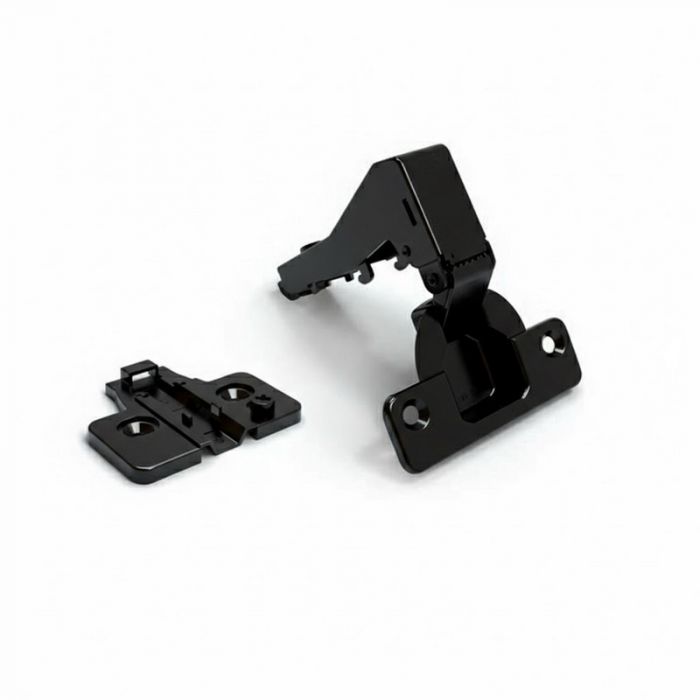

Features : ■ Damping technology with hidden micro-damper. ■ Available cup with 48 mm drilling pattern. ■ Cup diameter 35 mm ■ Steel mounting plate, vertical adjustment by CAM; 37x32 pattern. ■ Frontal adjustment BY CAM - 0/+5 mm. ■ Lateral overlay adjustment -1/+5 mm. ■ In addition to vertical adjustment on mounting plate.
Technical details Door type : To fix on the blind corners, drill for mudulus 37x32 mm. User friendly features : Soft closing feature. Door mounting option : fix on the blind corners. Opening angle : 90 °. Max. door thickness : 24 mm. Available cup : 48 mm drilling pattern. Cup diameter : 35 mm. Cup depth : 11.4 mm. Mounting plate : Steel , with vertical adjustment. Type of installation : for screwing on. Material : Zamak. Finish : galvanic Anthracite.
