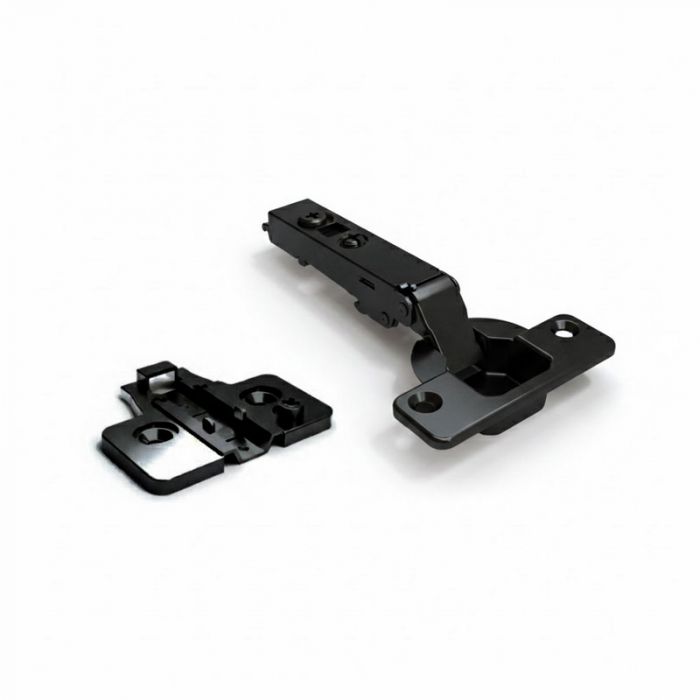

Features : ■ Damping technology with hidden micro-damper. ■ Available cup with 52mm drilling pattern. ■ Cup diameter 40 mm ■ Steel mounting plate, vertical adjustment by CAM; 37x32 pattern. ■ Frontal adjustment BY CAM - 0/+5 mm. ■ Lateral overlay adjustment -1/+5 mm. ■ In addition to vertical adjustment on mounting plate.
Technical details Door type : Standard door / wooden door furniture. User friendly features : Soft closing feature. Door mounting option : full overlay. Opening angle : 93°. Max. door thickness : 24 mm. Available cup : 52 mm drilling pattern. Cup diameter : 40 mm. Cup depth : 13.6 mm. Mounting plate : Steel , with vertical adjustment. Type of installation : for screwing on. Material : Steel. Finish : galvanic Anthracite.
