Designed to deliver maximum efficiency, the pivot door system combines high load capacity with exceptional performance. Its advanced engineering ensures smooth and seamless opening and closing, providing a refined and quiet user experience.
With precise adjustment features, it allows for fine-tuning during installation to ensure perfect alignment and highly accurate results. Ideal for projects demanding quality, durability, and sophisticated aesthetics.

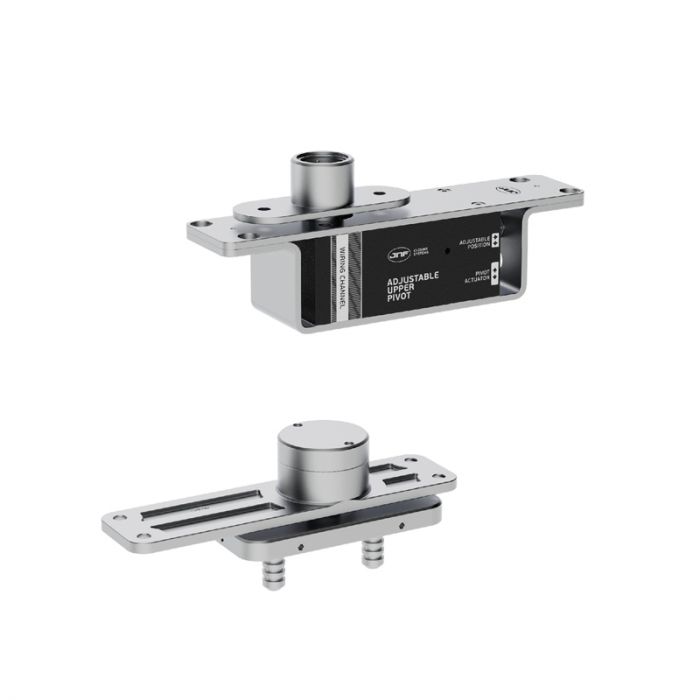

The system is hidden inside the door, with only a small base on the floor, with bidirectional adjustment and a pivot point on the ceiling or upper frame of the door with built-in bearing.
Pivot features: 1- Adjustment of position on the upper swing and base. 2- Upper pivot with needle bearing. 3- Installation of the upper pivot from the top of the door. 4- Applicable to the floor surface without masonry work. 5- Applicable to single or double actions doors.
Product specifications : » Free-swinging 360° pivot hinge. » Maximum door weight : up to 500 kg. » Maximum door width : 3000 mm. » Minimum Wood Thickness : 45 mm. » Minimum pivot point offset : 150 mm. » Gap at floor : 14 mm. » Gap at header : 6 mm. » Material : EN 1.4301 (AISI 304). » Finishing : Satin.
