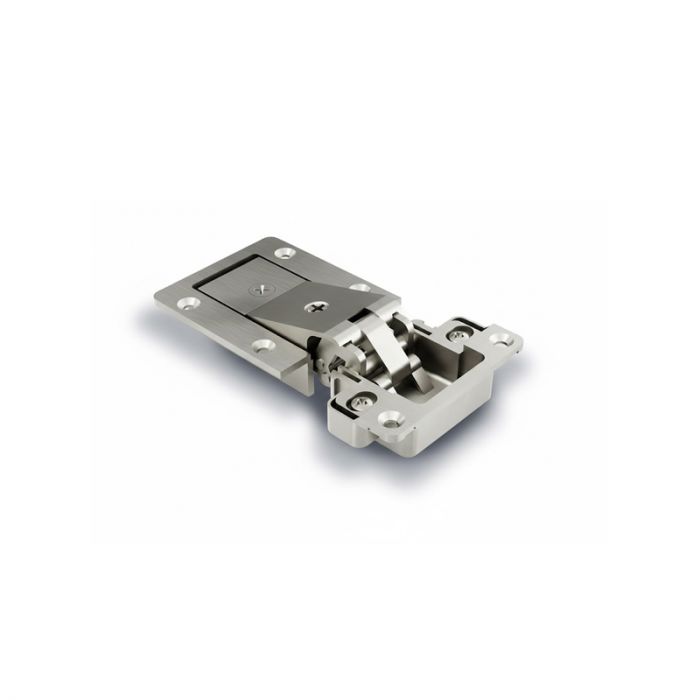

Main features ■ A pair of hinges for heavy duty doors, up to 35 kg weight. ■ With integrated soft closing. ■ Suitable for min. 18 mm wood doors or for aluminum framed doors min. 40 mm width. ■ 3D Adjustment system Vertical adjustment +/- 2 mm. Frontal adjustment by cam - 1/+3 mm. Lateral overlay adjustment -0/+3 mm.
Technical informatios: Crank : straight. Opening angle : 90°. Load capacity ( pair of hinges) : 26-35 kg. Maximum door width : 600 mm. Minimum thickness : 18 mm, for wooden doors. Minimum profile width : 40 mm, for aluminum framed doors Color : Nickel.
