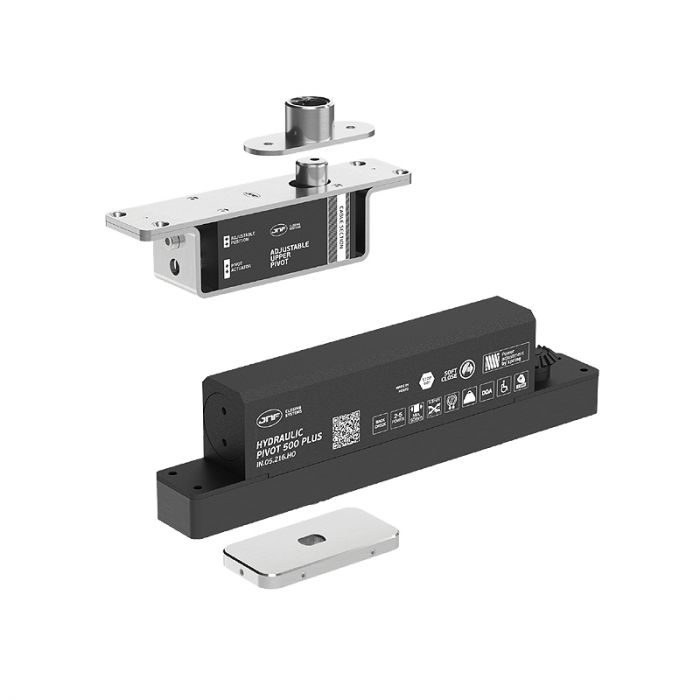

The CAM SYSTEM combined with hydraulics allows the closing control of large swing doors up to 500kg, lengths up to 3000mm and height up to 4000mm, while opening them with little effort and hold open 90º Feature.
The doors can be single or double action, with thickness from 50mm. The system is hidden inside the door, with only a small base on the floor, with bidirectional regulation and a rotation point on the roof or upper frame of the door with built-in bearing.
Main Features : 1) High-performance hydraulic pivot system. 2) Applicable to single or double action doors. 3) Supports doors up to 500 kg. 4) Suitable for swing or hinged doors. 5) 90º stop for greater convenience. 6) This system is that the rotation point of the door can be from 150mm to the center of the door. 7) Bidirectional adjustment for precise adjustment. 8) Hidden system, ensuring a clean and modern design. 9) Recommended for spaces accessible to people with reduced mobility and children.
Technical specifications : • Soft closing with 2 speeds, adjustable by valves. • BACK-CHECK function for opening control. • Soft opening, recommended for people with reduced mobility and children. • Adjustable force 2 to 5 • Adjustment of position on the upper pivot and base. • Upper pivot with needle bearing. • Installation of the upper pivot from the top of the door. • Applicable to the floor surface without masonry work. • Minimum distance from the axis to the top of the door: 150mm. • Minimum door thickness: 50mm. • Door width up to 3000mm. • Material : Stainless steel EN 1.4301 (AISI 304). • Finish : Satin, for an elegant touch.
