Pivot Set Function - used to facilitate the rotation or pivoting of doors around a vertical axis. Pivot sets are designed to enable doors to swing smoothly and efficiently while providing stability and support. They are often used in situations where traditional hinges may not be suitable due to the size, weight, or design of the door.

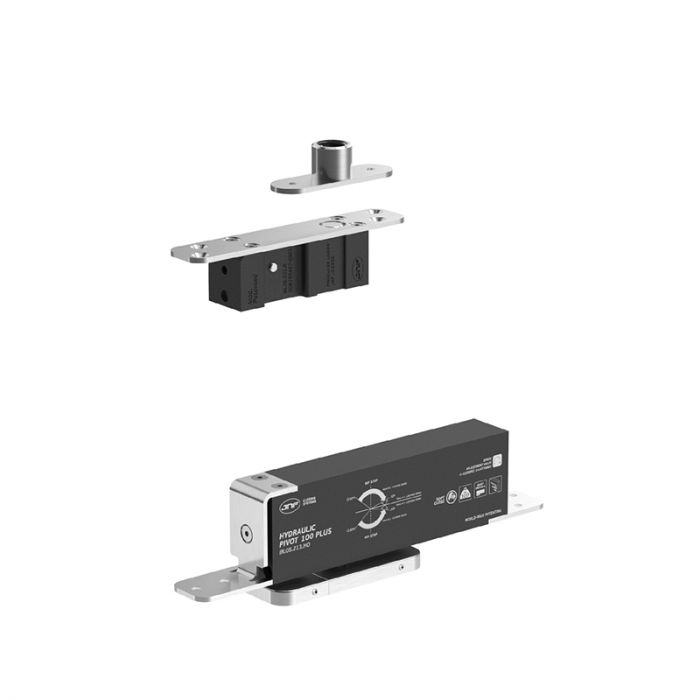

Product Description
• The CAM system combined with hydraulics allows the closing control of swing doors that up to 100 kg, while opening them with little effort. The doors can be single or double action, with minimum thickness 40mm.
• The system is hidden inside the door, with only a small base on the floor, with bidirectional regulation and a rotation point on the roof or upper frame of the door with built-in bearing.
• The closing control is carried out by two valves that can precisely adjust the initial and final closing speed, the final speed being especially important when the door has a lock installed.
Product Features :
System for Door Position Adjustment : ±3mm | ±3mm / 4 Angle
Maximum door weight : 100 kg.
Minimum wood thickness : 40 mm.
Material : Stainless steel EN 1.4301 (AISI 304).
Finish : Satin, elegant finish.
| Brand | JNF |
|---|---|
| MADE IN | Portugal |
