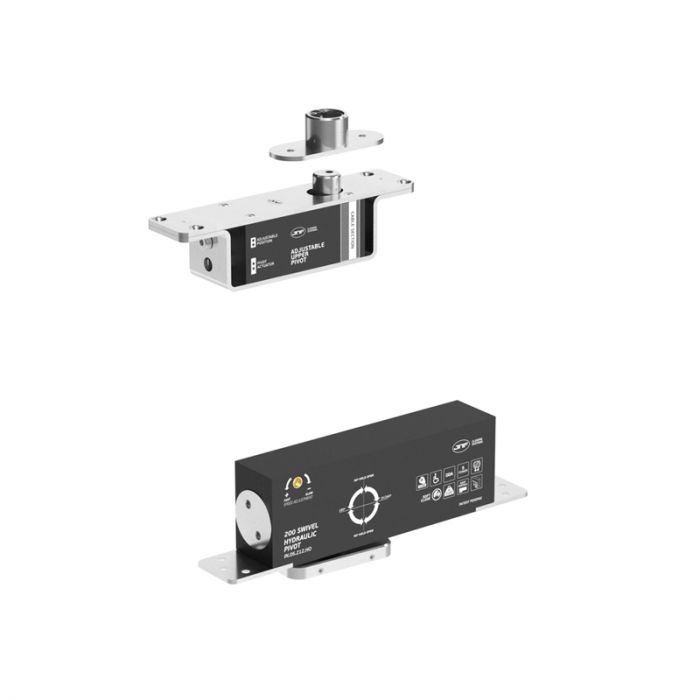

Swivel 360º Hydraulic Pivot for doors up to 200 kg with hold open 90º feature

\ Can be installed in any position on the door, even centered for 360º opening.
\ The CAM SYSTEM combined with hydraulics allows the closing control of large swing doors, while opening them with little effort.
\ The doors can be single or double action, with minimum thickness 50mm.
\ The system is hidden inside the door, with only a small base on the floor, with bidirectional regulation and a rotation point on the roof or upper frame of the door with built-in bearing.
\ The closing control is carried out by one valve. In order to cover doors with weights from 40 to 200kg, lengths up to 2000mm.
